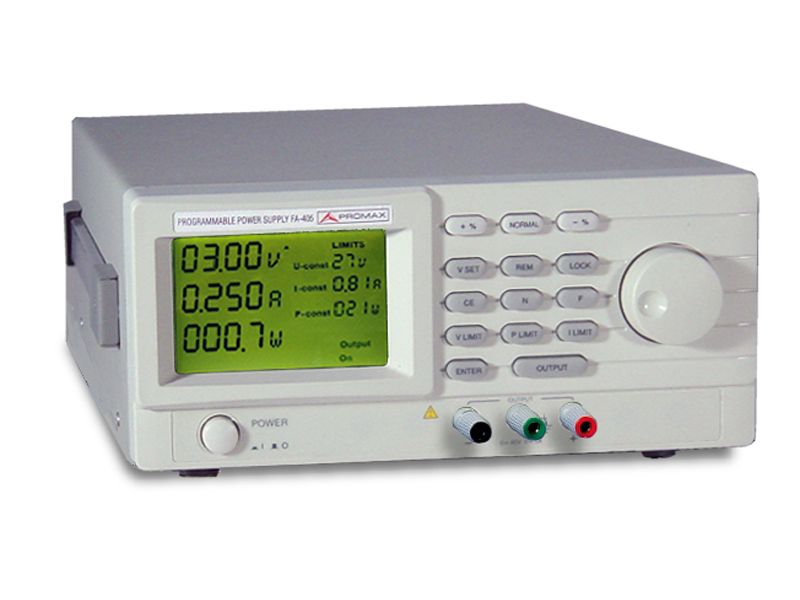

Promax GR-405 PROGRAMMABLE POWER SUPPLY (40V-5A)

Output voltage: DC From 0 to 40 V

Output current: 0 to 5 A

- Voltage regulation:

Voltage load regulation: ≤10 mV

Voltage line regulation: ≤ 0.05 %

- Current regulation:

Current load regulation: ≤ 5 mA

Current line regulation: ≤ 0.05%

- Ripple:

Voltage (mV effective value): ≤ 20 mV

Current (mV effective value): ≤ 10 mA

- Resolution of programming and measurement:

Voltage: 10 mV

Current: 2 mA

- Accuracy of programming and measurement:

Voltage: ± 0.05 % reading + 3 digits

Current: ± 0.1% reading + 5 digits

- Incremental Control Programmable: from 0 to ± 50%

- Protections: OVP/OCP/OPP/OTP

LCD display Simultaneous presentation of current/limits, with backlighting: voltage, power and current; as well as exit-locking conditions and remote control.

- Remote control: RS-232C standard

- Additional security: Exit key ON / OFF Blocking controls key

- Power supply: AC 115 V/230V ± 15%, 50/60 Hz

- Consumption: Up to 420 W

- Dimensions: W. 225 x H. 100 x 305 D. mm

- Weight: 4 kg
