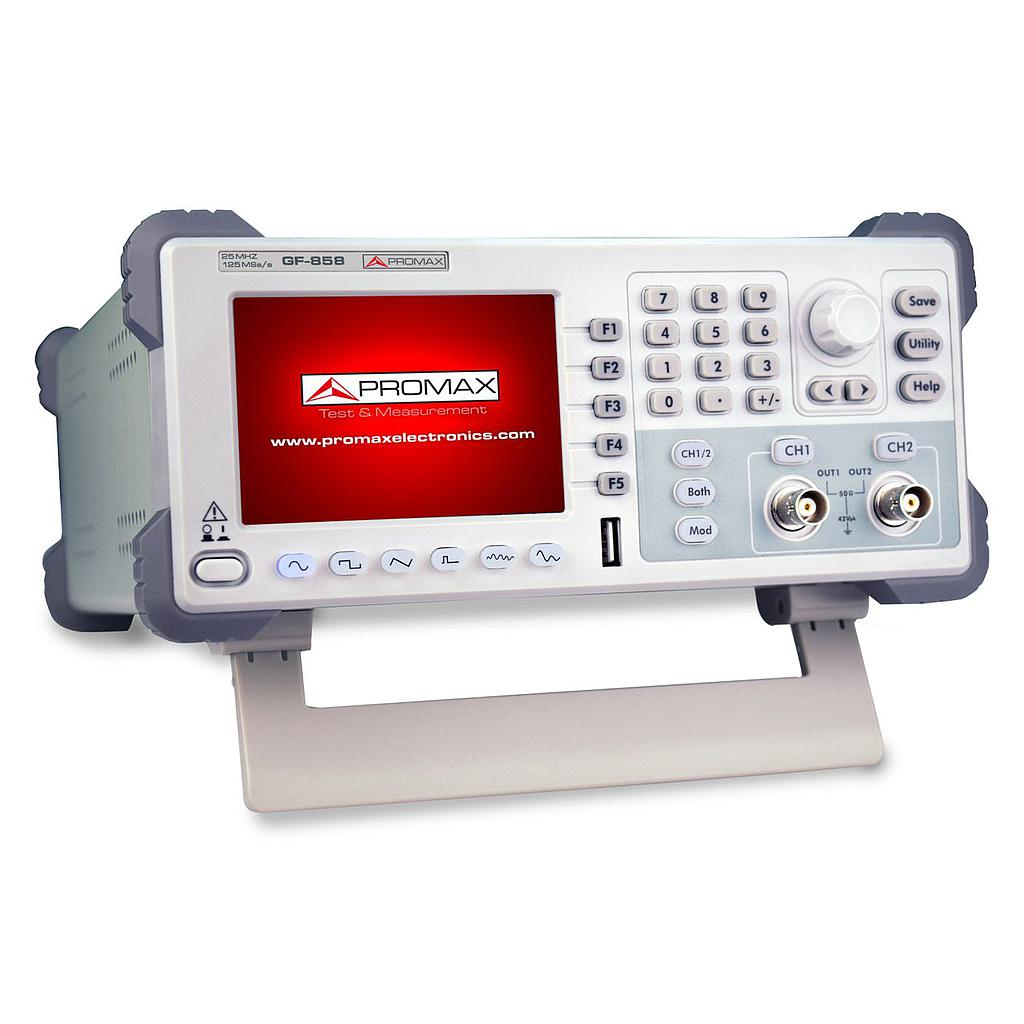

Promax GF-858 Arbitrary Waveform Function Generator

Frequency output: 25 MHz

Sample rate: 125 MS/s

Vertical resolution: 14 bits

Waveform

Standard: Sine, Square, Ramp, Pulse, Noise

Arbitrarias Exponential: Rise, Exponential fall Sin(x)/x, Step Wave, etc. Total 48 built-in waveforms and user-defined arbitrary waveforms.

Frequency resolution

Sine: 1 µHz to 25 MHz

Square: 1 µHz to 5 MHz

Pulse: 1 µHz to 5 MHz

Ramp: 1 µHz to 1 MHz

Ruido: 25 MHz (-3 dB) typ.

Arbitrary waveform: 25 MHz (-3 dB) typ.

1 µHz to 25 MHz

Counter

Function: Frequency, period, positive pulse width, duty cycle

Frequency range: 100 mHz to 200 MHz

Resolution: 6 digits

Display: 4” (480 x 320 pixels) LCD

Dimensions: 235 (W.) x 110 (H.) x 295 (D.) mm

Weight: 3 kg
