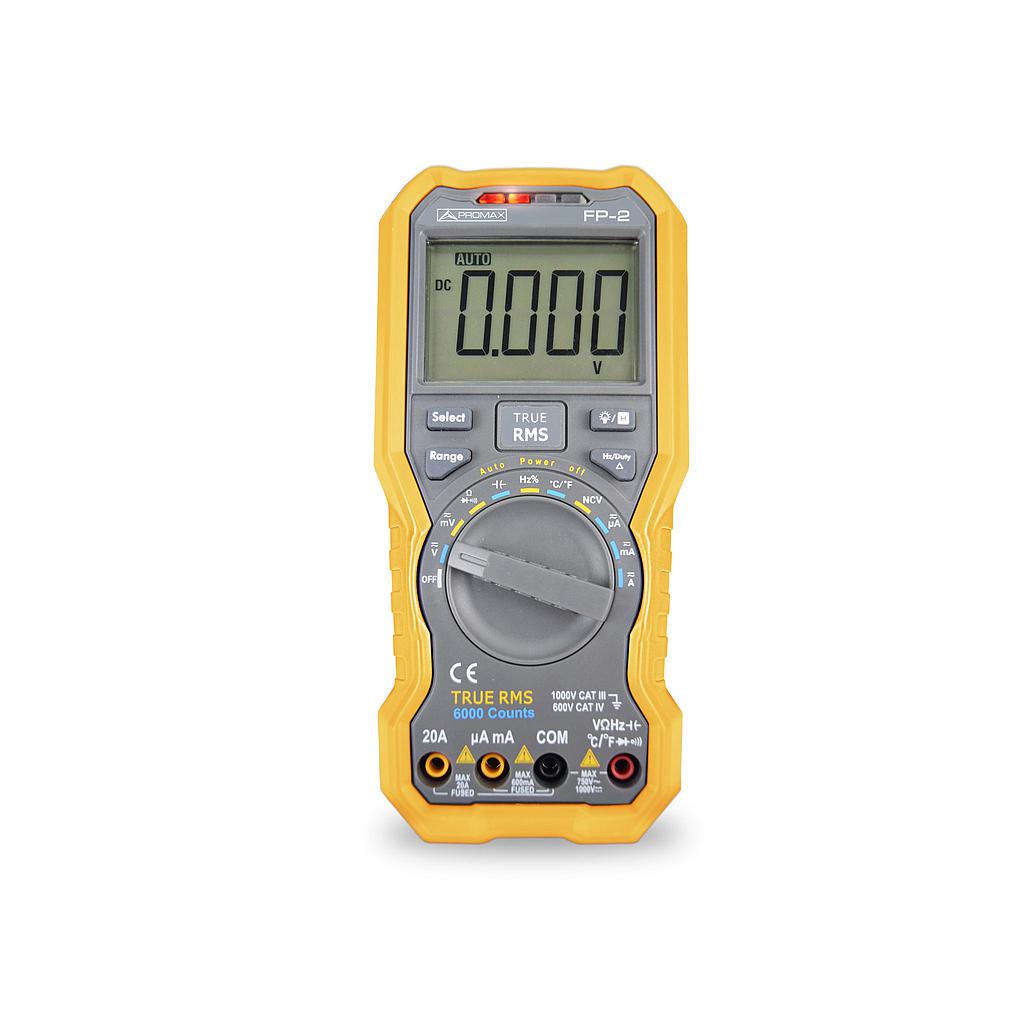

Promax FP-2 Digital Multimeter

Display: Graphic LCD backlighted screen, 58.5 x 51 mm

Reading rate: 3 measurements/s

Voltage measurement

DC: 60 mV, 600 mV, 6 V, 60 V, 600 V, 1000 V

AC: 600 mV, 6 V, 60 V, 600 V, 750 V

Current measurement

DC: 600 µA, 6000 µA, 60 mA, 600 mA, 20 A

AC: 600 µA, 6000 µA, 60 mA, 600 mA, 20 A

Resistance: 600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ, 60 MΩ

Capacity: 60 nF, 600 nF, 6 µF, 60 µF, 600 µF, 6 mF, 60 mF

Frequency test: 9.999 Hz, 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz, 99.9 kHz, 9.999 MHz

Duty Cycle: From 0.1% a 99.9%

Temperature probe: From -50 ºC to 400 ºC (-58 ºF to 752 ºF)

Contactless voltage detector: From 90 to 1000 V AC (50/60 Hz)

Frequency response: From 40 to 1000 Hz

True RMS: Yes

Diodes: Yes

Continuity: Yes

Relative measurement: Yes

Range: Manual or automatic (autorange)

Protected input: Yes

Impedance input: ≥10 MΩ

Other functions and features: Data hold, work LED flashlight, anti-shock protector, foldable holder

Power supply: 9 V (6F22) battery with low battery alert and auto power off function

Polarity indication: The symbol “-” appears in the display for negative polarity

Dimensions: 90 (W) x 190 (H) x 56 (D) mm

Weight: 320 g. (without battery)

Included accessories: Test probes, temperature probe, quick reference guide, 6F22 9V battery, Phillips screwdriver
