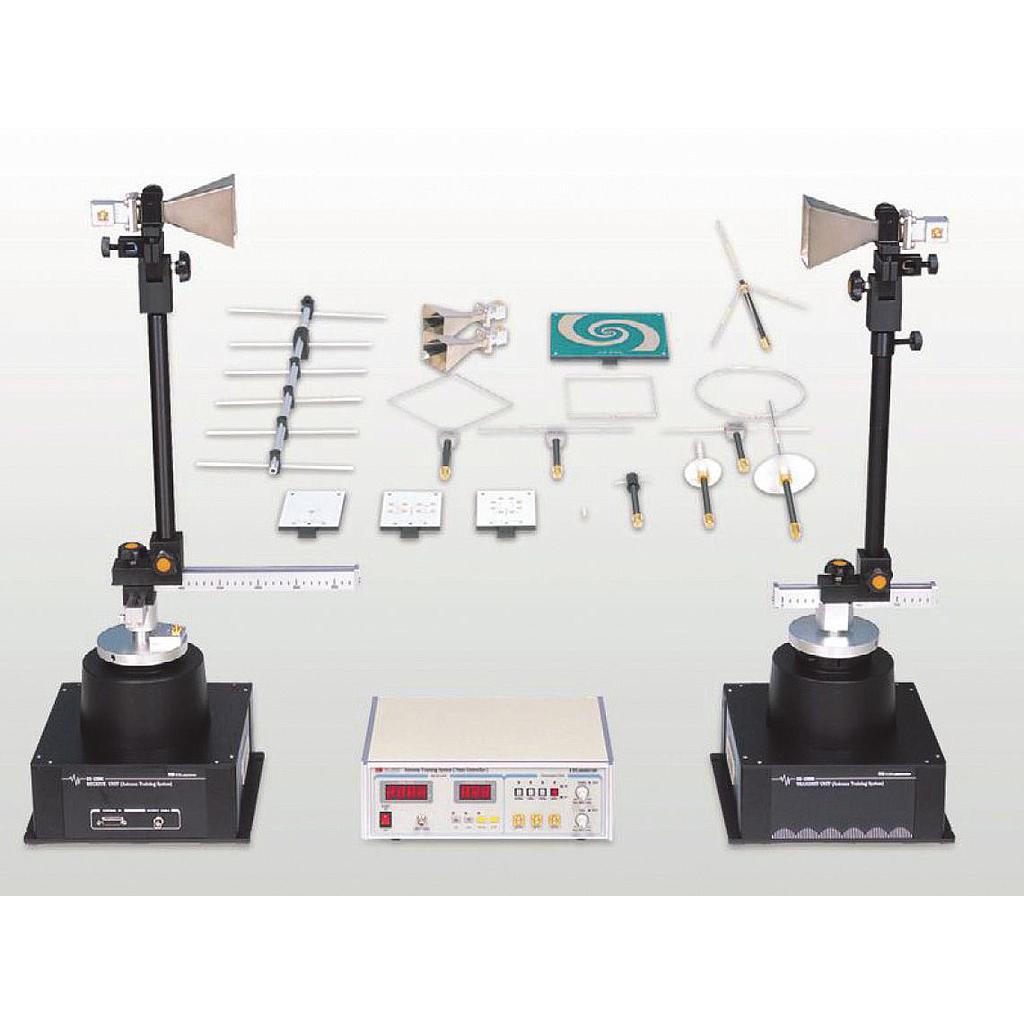

Promax EA-818 Antenna design and analysis trainer

Manufacturer: Promax

Model: EA-818

Origin: UK

Warranty: 12 months

Allows the study of the Propagation Pattern and Gain of antennas. It integrates a controller unit that acts as an RF signal source of 500 MHz, 2 GHz and 10 GHz and an antenna simulation software is supplied to practically reproduce the pattern and characteristics of an antenna through the PC.

MAIN CONTROLLER

RF generator

Frequency range: 500 MHz, 2 GHz, 10 GHz

Power range: 10 mW (Approx.)

Output impedance: 50 Ω (Nominal)

Modulation frequency: 1 kHz

Receiver and Control

RF input level From: -50 dBm to -10 dBm

Directional antenna control range From: 0º to 360º

Antenna rotor angle control :1º/step, 5º/step, 10º/step

Interface: Manual / PC (RS-232C)

ANTENNA TRANSMIT UNIT

Fixing (for polarised wave): Horizontal / Vertical

Antenna directional control: Manual

Dimensions: 300 (W.) x 800 (H.) x 270 (D.) mm

Weight: 7.5 kg

ACCESSORIES: AC power cord, Software CD-ROM, User manual, BNC cable, Set of cables (4 types)

EXPERIMENTAL MODULES (15 u.)

RF freq. 500 MHz: 1x Dipole, 1x Folded dipole, 2x Yagi, 1x Monopole, 1x Drooping,

1x Circular loop, 1x Square loop, 1x Diamond loop

Freq. 2 GHz: 2x Dipole, 1x Spiral, 1x Monopole

Freq. 10 GHz: 1x Helical, 2x Horn, 1x Rectangular patch,

1x Microstrip planar array (Rectangular),

1x Microstrip planar array (Circular)
