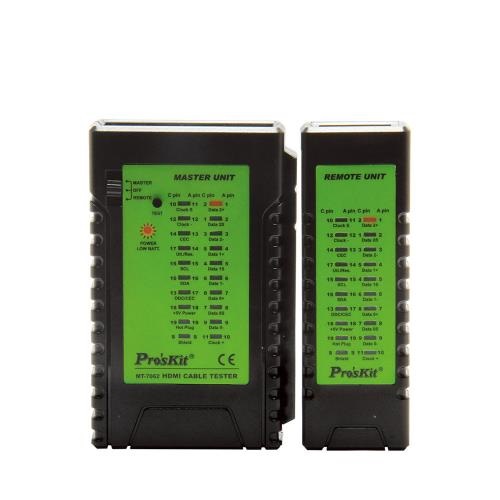

Proskit MT-7062 HDMI Cable Tester

Cable versions support HDMI Cables with type A & C connectors conforming to 1.0, 1.1,
1.2, 1.3, 1.3a, 1.3b, 1.3c, 1.4, 1.4a, catagory 1 and catagory 2 cables
Support test (master unit and remote unit) 19 pin-to-pin wire map and shielding detection
Test interface of Master unit HDMI (type A) ×2, Mini HDMI (type C) ×1
Test interface of Remote unit HDMI (type A) ×1, Mini HDMI (type C) ×1
Test Mode Fast scan / Slow scan / Step by step
Beeper indication Yes
Low battery indication 6.0V
Power source DC 9V ×1 (not included)
Dimensions Master unit: 103×66×27mm, Remote unit: 103×35×27mm
Environment Operation: 0°C to 40°C (32°F to 104°F) <80%RH
Storage: -10°C to 50°C (14°F to 122°F) < 70%RH
Weight 130g ( not include battery)
Package Blister Card

Manual MT-7062

Features

Test all HDMI cables with Type A to A, A to C and C to C connectors
Design with loopback function allows test HDMI type A to A, A to C on main unit.
Automatically fast & slow scan for testing all conductors status in a cable, Manual test for step by step detecting individual conductors for intermittent faults.
Automatically detect wiring on HDMI type A or type C condition in straight, short, open, crossover in all RGB conductors.
Quickly troubleshoot and verify HDTV installation and DIY termination in the field.
