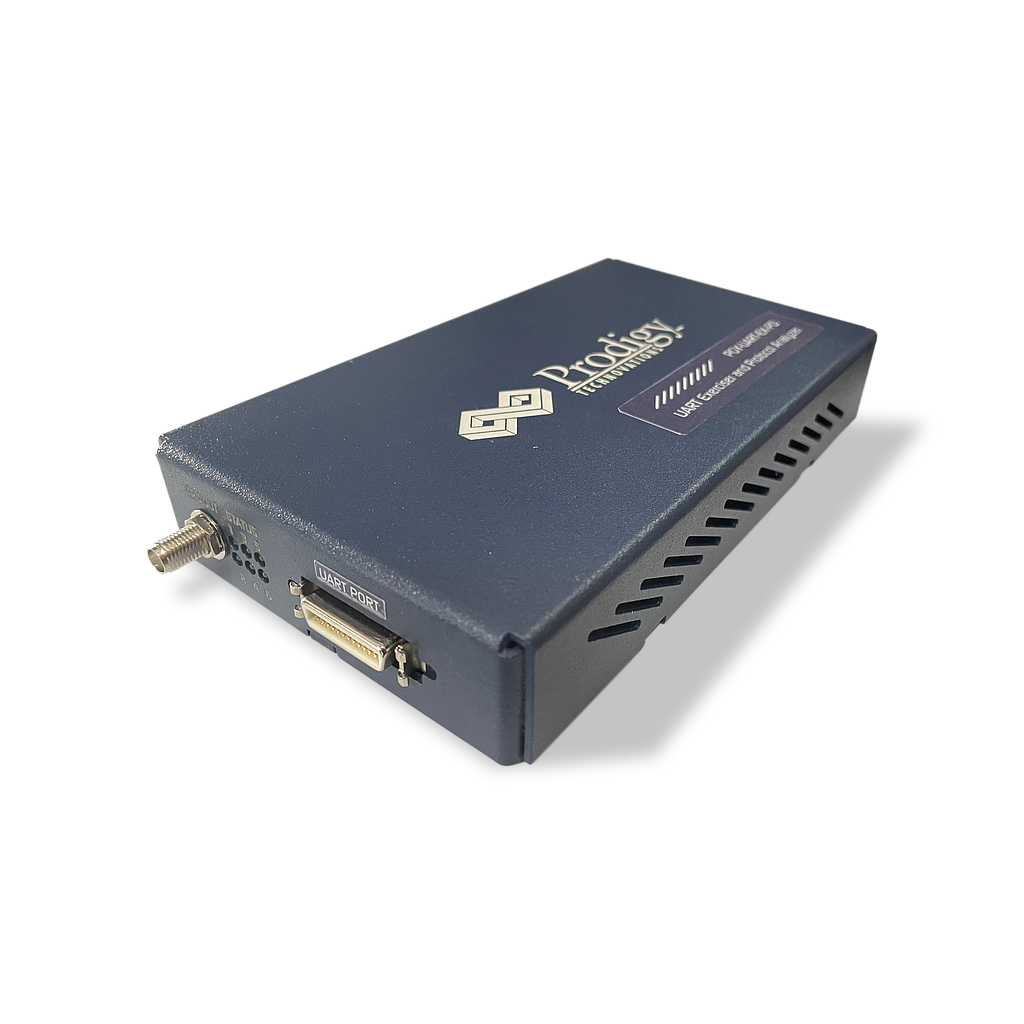

Prodigy Technovations PGY-UART-EX-PD UART Protocol Analyzer and Exerciser

Exerciser:

UART Traffic Generation: Custom UART traffic generation; Simulate real world network traffic

UART Baud rate supported: 300-256000

Voltage Drive Level: 1V to 3.3V at steps of 100mV

Parity Bit Selection: Odd or Even Parity

Data Width: User Defined, 5-10bits

Data Shift: User Defined, LSB First or MSB First

Delay between two messages: User Defined

Error Injection: Parity Error

API Support: Support for Automation of operation using Python or C++.

Protocol Analysis:

Supports: UART protocol decode

Protocol Views:

+ Timing Diagram View.

+ Protocol Listing View.

+ Bus-Diagram to display Protocol packets with timing diagram plot.

Protocol Error report: Parity error

Capture Duration: Continuous streaming Protocol; Data to host HDD/SSD

Host Connectivity : USB 3.0/2.0 interface
