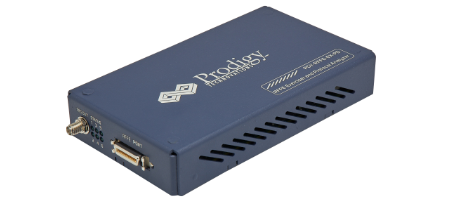

Prodigy Technovations PGY-RFFE-EX-PD RFFE Protocol Analyzer

Exerciser:

Configurable: 1 Master + 4 Slaves

RFFE Traffic Generation: Custom RFFE Traffic Generation

SCL Frequency: 32KHz to 52 MHz (45?)

Voltage Drive Level: 1.2V and 1.8V

SCL duty cycle variation: 25%, 50% and 75%

SCL and SDA delay: User defined in multiples of 5.2ns

Delay between two messages: User defined

Error injection: Parity error injection

Protocol Analysis:

Supports: RFFE 2.0/2.1 protocol decode

Protocol Views

+ Timing Diagram View

+ Protocol Listing View

+ Bus-Diagram to display Protocol packets with timing diagram plot

Protocol Trigger:

+ Auto (Trigger on any packet)

+ Simple (Trigger on any user defined RFFE packet)

+ Advanced (Multi-state & multi-level trigger capability)

Capture Duration: Continuous streaming Protocol Data

Protocol Error Report: Parity

Host Connectivity: USB 3.0 / 2.0 interface

Datasheet
