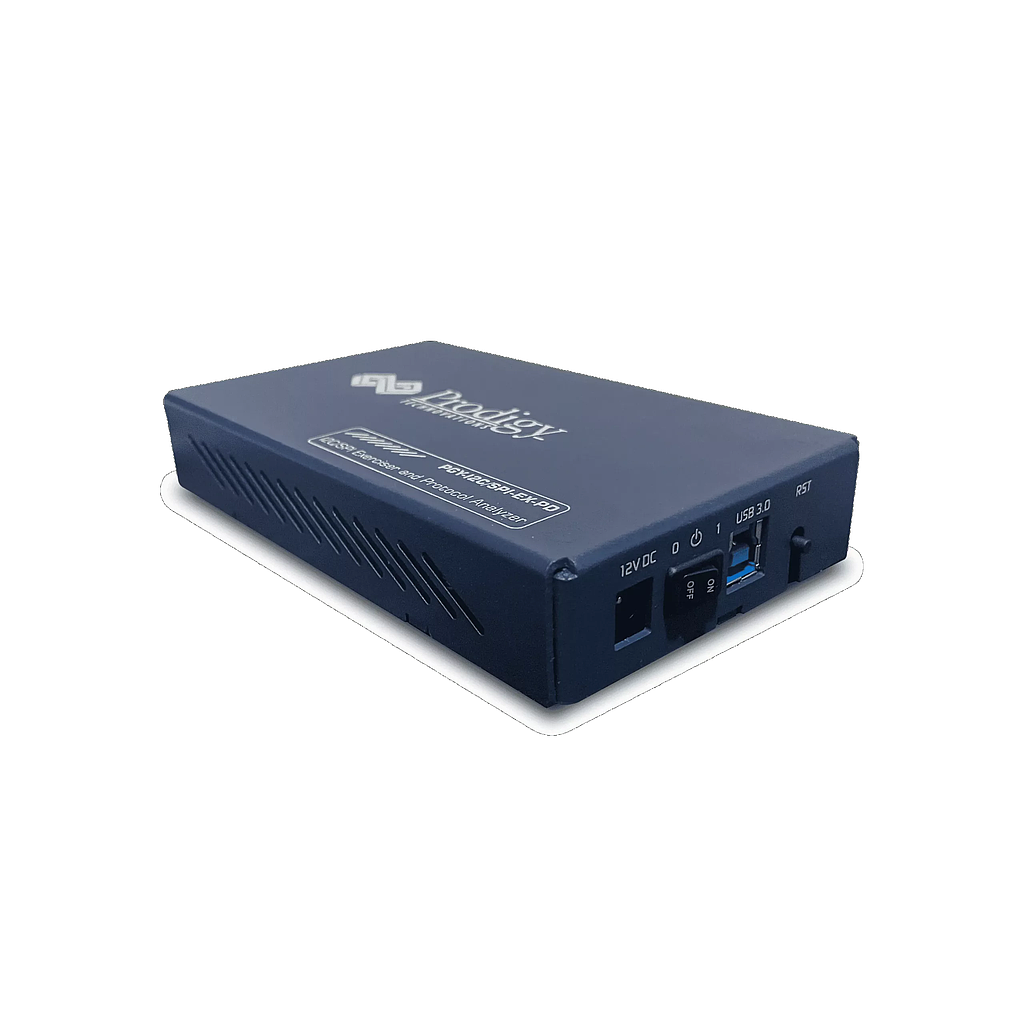

Prodigy Technovations PGY-I2C/SPI-EX-PD I2C Protocol Analyzer and SPI Protocol Analyzer

Exerciser:

Interfaces supported: l2CorSPI

Configurable: 112C Master + 3 I2C Slaves OR; 1SPI Master+1SPI Slave

I2C/SPI Traffic Generation: Custom I2C/SPI traffic generation

Clock Frequency: Upto 3.4 MHz for I2C; Variable up to 32 MHz, Fixed Up to 50 MHz for SPI

FIFO Capacity: I2C: Yes, 8K read and 8K write on master & IK on Slave.

Voltage Drive Level: 1V to 3.3V for I2C. 1V to 3.3V for SPI. Variable in steps of lOOmV

Command sequence Support: All command sequence is supported *

Clock Duty Cycle variation: User Define for I2C. 25%, 50%, or 75% for SPI

Clock & Data Delay: User defined for I2C. User defined for SPI. *

Delay between two messages: Customisable Delay

API Support: I2C: Yes. SPI: Yes.

Protocol Analysis:

Supports: I2C/SPI protocol decode

Protocol Views:

+ Timing Diagram View

+ Protocol Listing View

+ Bus-Diagram to display Protocol packets with timing diagram plot

Protocol Trigger: I2C Trigger Capabilities:

• Auto Trigger

• Message trigger- Trigger Slave Address for write or read command on NACK and Trigger Slave Address and Data for Write or Read command on ACK.

• Advanced multi-level, multiple condition trigger.

Capture Duration: Continuous streaming Protocol Data *

Report Generation: CSV/PDF format

Host Connectivity: USB 3.0 / 2.0 interface

Dimension: 157mm x 90.2mm x 26.6mm

Net Weight: 290 gms /0.63 lbs

Gross Weight: 1.05 kg /2.31lbs
