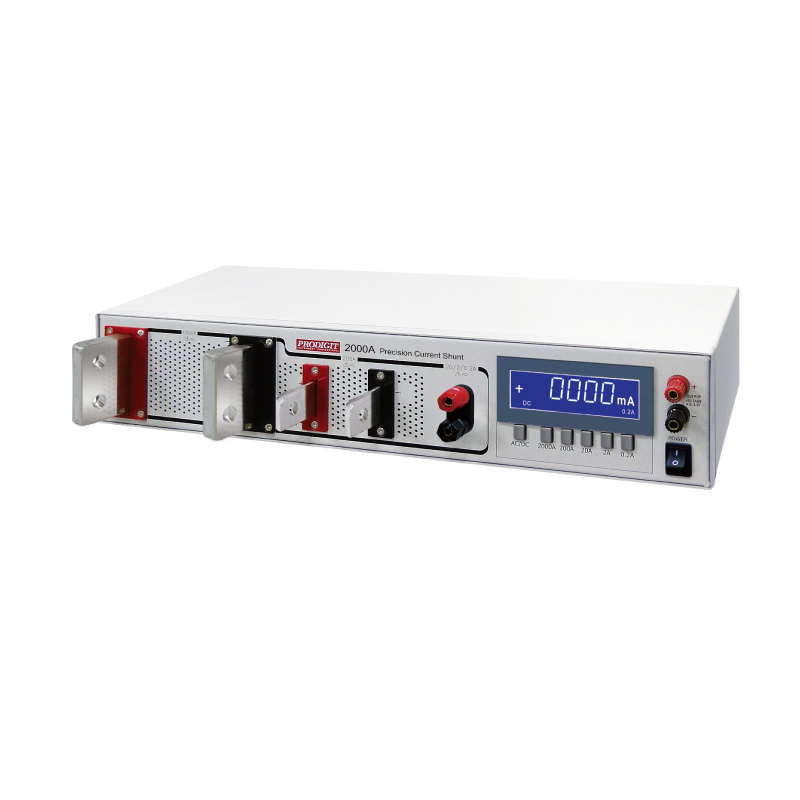

PRODIGIT 2000A-R Precision Current Shunt (1μA~2000A; Rear Input)

Range: 0.2A(max 0.4A)/2A(max 4A)/20A(max 30A)/200A(max 250A)/2000A(max 2000A)

Shunt Value: 1Ω/0.1Ω/0.01Ω/0.001Ω/0.0001Ω

DC Accuracy: 0.01% of Reading/0.01% of Reading/0.01% of Reading/0.02% of Reading/ 0.15% of ( Reading + Range )

AC Accuracy:

0.2A/2A/20A/200A: 0.1% of Reading

2000A: 0.4% of Reading + Range

Output Voltage: 0.2A/0.2V, 2A/0.2V, 20A/0.2V, 200A/0.2V, 2000A/0.02V

5 1/2 Digit Ampere Meter:

Range: 0.2A/2A/20A/200A/2000A

Resolution: 0.001mA / 0.01mA; 0.01mA / 0.1mA; 0.0001 A / 0.001A; 0.001 A / 0.01A; 0.01 A / 0.1A

AC power: 115/230 Vac, 50/60Hz

Cooling: Force Fan Cooled

Weight: 18.5kg

Dimension: 440(W) x 88.9(H) x 410(D)mm

Optional interface: GPIB, RS232, USB, LAN

Datasheet
