Proceq Pundit PL-200PE Ultrasonic Pulse Velocity

Application
Slab thickness from a single side
Detection and localization of voids, pipes, cracks (parallel to surface), and honeycombing

Technical Data
Range: 0.1 – 7930 μs
Resolution: 0.1 μs (< 793 μs), 1 μs (> 793 μs)
Display: 7” colour display 800x480 pixels
Pulse Voltage UPV: 100 – 450 Vpp
Pulse Voltage UPE: 100 – 400 Vpp
Bandwidth: 20 – 500 kHz
Receiver Gain: 1x – 10’000x (0 – 80dB) [11 steps]
Memory: Internal 8 GB Flash memory
Regional Settings: Metric and imperial units and multi-language supported
Battery: Lithium Polymer, 3.6 V, 14.0 Ah
Battery Lifetime: > 8h (in standard operating mode)
Operating Temperature: 0°C – 30°C (Charging, running instrument); 0°C – 40°C (Charging, instrument is off); -10°C – 50°C (Non-charging)
Humidity: < 95 % RH, non condensing
IP Classification: IP54
Accessories: Consisting of: Pundit Touchscreen, Pundit Pulse Echo Transducer incl. cable, contact tester, battery charger, USB cable, DVD with software, documentation, carrying strap and carrying case

Flyer

Manual

Pundit PL-200	Pundit PL-200PE
Through Transmission: Access from two sides	Pulse Echo: Single side access
Assessment of Concrete Quality
Ultrasonic Pulse Velocity
Uniformity
Compressive strength and SONREB	Slab thickness from a single side, eg. ground floors
Determination of crack depth	Detection and localization of voids, pipes, cracks (parallel to surface), and honeycombing
Modulus of elasticity
Assessment of Epoxy and refractory materials
Scan Modes

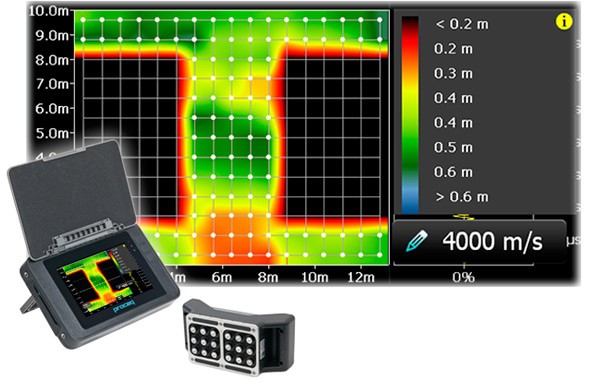

A-Scans Line Scans	A-Scans B-Scans
E-Modulus	Area Scan
Data Logging
Area Scan

		50 kHz Pulse Echo Transducer The Pulse Echo transducer is a shear wave transducer designed for single-handed and two-handed operation. It is particularly suited to testing where access is limited to a single side.
		Standard 54kHz Transducer A new design with improved performance to increase range and stability.
		150kHz Transducers These transducers have more resolution, but a decreased range. For use on fine grained samples.
		250kHz Transducers These transducers have more resolution, but a decreased range. For use on fine grained samples.
		54kHz Exponential Transducers For use on rough surfaces without couplant. When used in combination with Pundit Lab+ no external amplifier is required.
		500kHz Transducers For use with fine grained materials, such as rock and ceramics.
		250kHz Shear Wave Transducers For use in combination with standard P-wave transducers to measure the dynamic elastic modulus of the material under test.
		Transducer Holder Particularly useful for compound measurements such as surface velocity or crack depth.
