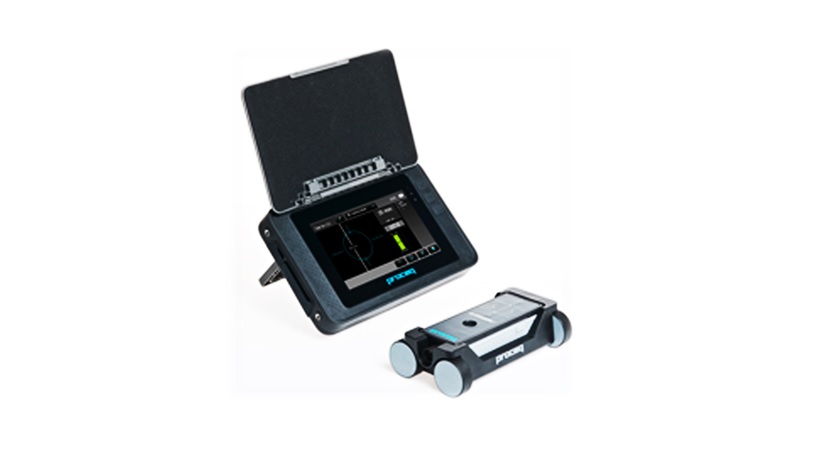

Proceq Profometer PM-600 Advanced Concrete Cover Meter

Cover Measuring Rangez: Up to 185 mm (7.3)
Cover Measuring Accuracy: ± 1 mm to ± 4 mm (0.04” to 0.16)
Measuring Resolution: Depending on diameter and cover
Path Measuring accuracy on smooth surface: ± 3 mm (0.12) + 0.5% to 1.0% of measured length
Display: 7” colour display 800x480 pixels
Diameter Measuring Range: Up to 63 mm (2.5)
Diameter Measuring Accuracy: ± 1 bar size
Memory: Internal 8 GB Flash memory
Regional Settings: Metric and imperial units and multi-language supported
Battery: Lithium Polymer, 3.6 V, 14.0 Ah
Battery Lifetime: > 8h (in standard operating mode)
Mains: 9 V – 15 V / 2.0 A
Weight (of display device): About 1525 g (incl. Battery)
Operating temperature: 0°C – 30°C (Charging, running instrument); 0°C – 40°C (Charging, instrument is off); -10°C – 50°C (Non-charging)
Humidity: < 95 % RH, non condensing
IP Classification: IP54
Standards and Directive: CE certification
Accessories: Profometer PM-600 consisting of Profometer Touchscreen, universal probe with probe cart, probe cable 1.5 m (5 ft), power supply, USB cable, chalk, DVD with software, documentation, carrying strap and carrying case
