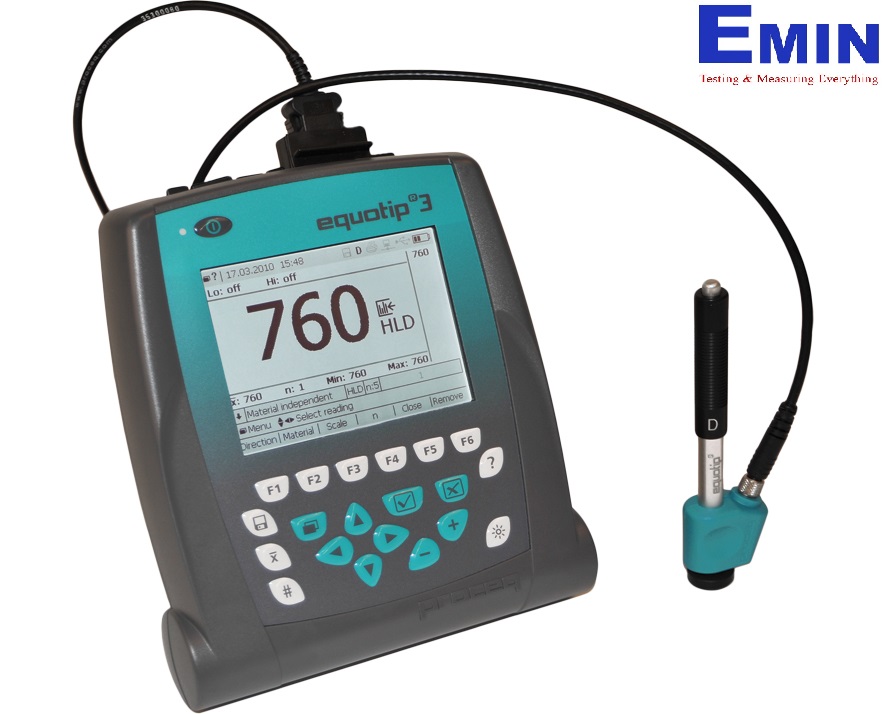

Proceq Equotip 3 Metal Hardness Tester
- Maker: Proceq
- Model: Equotip 3
The Equotip 3 is a versatile portable metal hardness tester offering extended capabilities and unmatched ease of operation. This metal hardness tester has a large and clear display which is integrated in the robust ABS plastic housing together with the sealed membrane keypad. With variable background lightning, the LCD display of the metal hardness tester offers a clear overview of the recorded metal hardness values even in dimly lit work areas. In particularly harsh working environments or for more comfortable handling the metal hardness tester Equotip 3 can be stored in a protective bag. To date, Equotip 3 is unmatched in its implementation of the portable metal hardness tester concept and has therefore become established as a globally recognized measuring technique. The Equotip 3 meets the customers needs for a non destructive metal hardness tester.
- Good for most metals
- Excellent for material selection, acceptance and production level testing
- The metal hardness tester Equotip 3 is ideal for on-site testing of heavy and large components before and after installation
- Handy for difficult to access or confined metal hardness test locations
- The Equotip 3 metal hardness tester is accurate also on curved test surfaces (R > 10 mm)
The following standards can be applied to the metal hardness tester Equotip 3:
|
|
| Metal hardness tester Equotip 3 unit incl. probe | |
| Testing method | Leeb rebound |
| Available probes | C, D, DC, DL, E, G, S |
| Spherical test tip | Tungsten carbide, 3 mm diameter (for C, D, DC, DL probes) 5 mm diameter (for G probe.) Polycrystalline diamond / ceramics 3 mm diameter for E /S |
| Min. radius of surface curvature | 10 mm |
| Resolution | 1 HL; 1 HV; 1 HB; 0.1 HRC; 0.1 HRB; 0.1 HRA; 0.1 HS; 1 MPa (1 N/mm²) |
| Accuracy | ± 4 HL (0.5% at 800 HL) |
| Metal hardness tester Equotip 3 indicating device | |
| Dimensions | 170 x 200 x 45 mm (6.7 x 7.9 x 1.8 in.) |
| Weight | 780 g plus approx. 120 g battery pack |
| Material | shock resistant ABS plastic |
| Display | large QVGA LCD with adjustable contrast and backlight |
| Internal data storage | ~ 100000 values |
| Communication | Ethernet, USB & RS 232 |
| PC application | Equolink 3 software included |
| Battery type | rechargeable Li ion or 3 standard size “C” cells |
| Operating temperature | 0 to + 50 °C (32 to 122 °F) |
| Storage temperature | -10 to + 60 °C (14 to 140 °F) |
| Humidity | 90 % max. |
