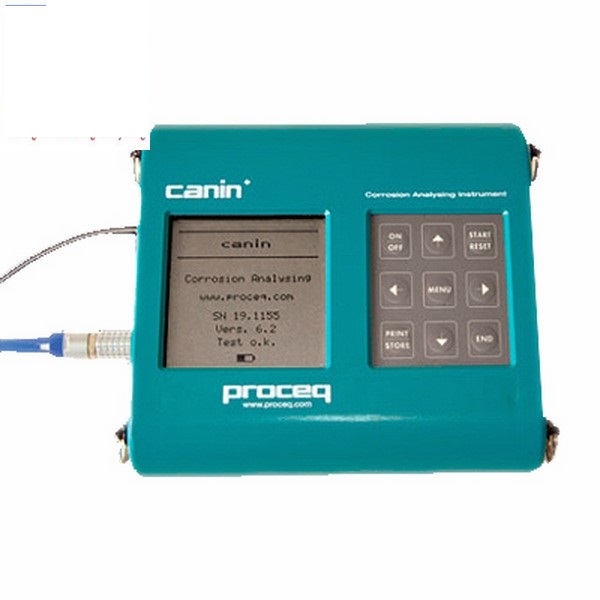

Proceq Canin+ Corrosion Analyzing Instrument (Configuration with Rod and Wheel Electrodes)

- Application
+ Rapid corrosion analysis of large areas using the 1- and the 4-Wheel Electrodes
+ Accurate location of areas of active rebar corrosion

- Technical Data
+ Measurement range: -999 mV to +340 mV
+ Resolution: 1 mV
+ Memory: non-volatile memory for up to 235’000 measurements stored in up to 71 object files
+ Software: Canin ProVista Software for downloading data and evaluation on PC
+ Battery operation: six LR 6 (AA) batteries, 1.5 V for up to 60 h (or 30 h with activated backlight)
+ Memory: non-volatile memory for up to 5’800 measurements stored in up to 24 object files
+ Data transfer: by Windows Hyperterminal
+ Battery operation: six LR 6 (AA) batteries, 1.5 V for up to 40 h (or 20 h with activated backlight)
+ Impedance: 10 MΩ
+ Operating temperature: 0° to 60° C
+ Storage temperature: -10° to 60° C
+ Display: 128 x 128 pixel graphic LCD with backlight
+ Data output: RS 232 interface, USB with adapter
+ Case dimensions: 580 x 480 x 210 mm (22.8 x 18.9 x 8.3 in.)
+ Weight: net. 10.6 kg (23.5 lbs); shipping 14 kg (31.1 lbs)
