Proceq Equotip 550 Rockwell Portable metal hardness tester

Name: Proceq Equotip 550 Rockwell Portable metal hardness tester
Brand: PROCEQ

ManufacturerPROCEQ

ModelEquotip 550 Rockwell

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

The Equotip 550 is the most versatile all-in-one solution for portable hardness testing. The Portable Rockwell test principle follows the traditional Rockwell static test method which is particularly suited for scratch-sensitive, polished or thin parts as well as for profiles and pipes.

In combination with the Equotip Leeb Impact Devices, the Equotip 550 can be extended with the Leeb hardness principle following the dynamic (rebound) method. This additionally allows automatic on-site correlation of Leeb to Portable Rockwell true indention hardness value.

The new generation Equotip Touchscreen interface is specifically designed to provide an exceptional user experience. The enhanced software provides interactive wizards, automatic verification processes, personalization options and custom report functions. Furthermore, it is compatible with upcoming developments.

The full color display allows best possible measuring and analysis of the measured data. The specially designed housing optimizes the on-site usage of the device in harsh environments.

To date, Proceq’s Equotip has become established as a globally recognized measuring technique and a de facto industry standard. The Equotip devices fully meet the demand for non-destructive hardness testing in a broad range of industries.

Equotip Portable Rockwell

Measurements in HRC and HV with automatic integrated conversions to HB, HRA, HRB and many more common scales in compliance to ASTM E140 and ISO 18265
Highly accurate ± 0.8 µm (~ ± 1.0 HRC) over entire range
Rapid and reproducible metal hardness readings independent of the material and sample dimensions
Small test load yields small penetrations of only a few μm
Unique measuring clamp and support feet are available for the probe allowing the test to be carried out on various geometries
Advanced algorithm option for faster measurement
Probe can be connected directly to PC

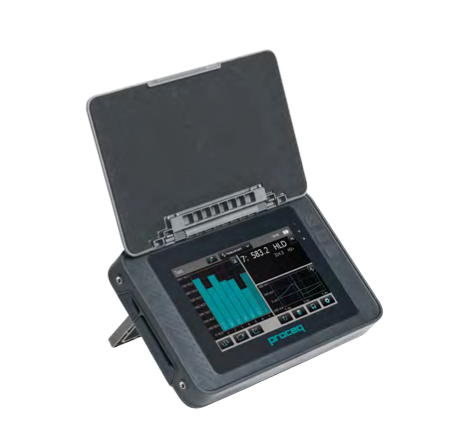

Equotip 550 Touchscreen Unit

Modular concept: Flexible configuration for various industry applications with a wide range of probes and accessories
Combined method: Automatic on-site correlation of Leeb to Portable Rockwell true indention hardness value
Guiding wizards: Predefined workflows to increase process reliability and to improve measurement precision
Automatic verification: Step by step verification in line with ISO 16859 and ASTM A956
Interactive guides: On-screen notifications to obtain the most relevant settings for your application
Conversion curves: Create, edit and verify material conversion curves directly on the instrument
Custom reports: Modular generator allows customized measurement reports
Automation option: Integration of NDT automation into quality management systems and automated testing environments
Housing specially designed to be used on-site in harsh environments (IP 54), including carrying strap, integrated stand and sunshield cover
High resolution color display
Battery lifetime of > 8h
8 GB Flash memory
Dual core processor supporting diverse communication and peripheral interfaces: Probe Connector, USB Host, USB Device and Ethernet
Future proof investment through direct compatibility with upcoming developments

Applications:

Precise metal hardness testing of very soft materials through to very hard materials
Thin parts, profiles and pipes of a wall thickness ≤ 2 mm, sheets, coiled metal, as well as parts as thin as 0.2 mm (0.008”), depending on the hardness level
Testing on scratch-sensitive or polished surfaces, eg. in the automotive industry
Metal hardness testing of heat-affected zones near welding seams
Testing of roadway metals

Proceq offers accessories such as a measuring clamp or several support feet adapt to freehand hardness measurements on various test piece geometries.

Instrument:
Display	7” color display 800x480 pixels
Memory	Internal 8 GB Flash memory (up to 1000000 measurements)
Regional settings	Metric and Imperial units, multi-language and timezone supported
Battery	Lithium Polymer, 3.6 V, 14.0 Ah
Battery lifetime	> 8h (in standard operating mode)
Power input	12 V +/-25 % / 1.5 A
Weight (of display device)	About 1525 g (incl. Battery)
Dimensions	250 x 162 x 62 mm
Max. altitude	2 500 m above sea level
Humidity	< 95 % RH, non condensing
Operating temperature	0°C to 30°C (32 to 86°F) (Charging, running instrument) 0°C to 40°C (32 to 104°F) (Charging, instrument is off) -10°C to 50°C (14 to 122°F) (Non-charging)
Environment	Suitable for indoor & outdoor use
IP classification	IP 54
Pollution degree	2
Installation category	2
Equotip Portable Rockwell Probe:
Dimensions	112.5 x o 42 mm (4.4 x o 1.6 inches)
Weight	260 g (9.17 oz)
Power supply	Via USB (5 V, max. 100 mA)
Measuring range	0-100 µm; 19-70 HRC; 34-1080 HV
Measuring accuracy	1.5 HRC according to DIN 50157
Resolution	0.1 µm; 0.1 HRC; 1 HV
Test direction	Any direction (no correction required)
Test loads	10 N / 50 N (probe 50 N)
Diamond indenter	Angle 100.0° +/- 0.5°
Operating temperature	0°C to 50°C (32 to 122 °F)
Humidity	Non-condensing, 90%
