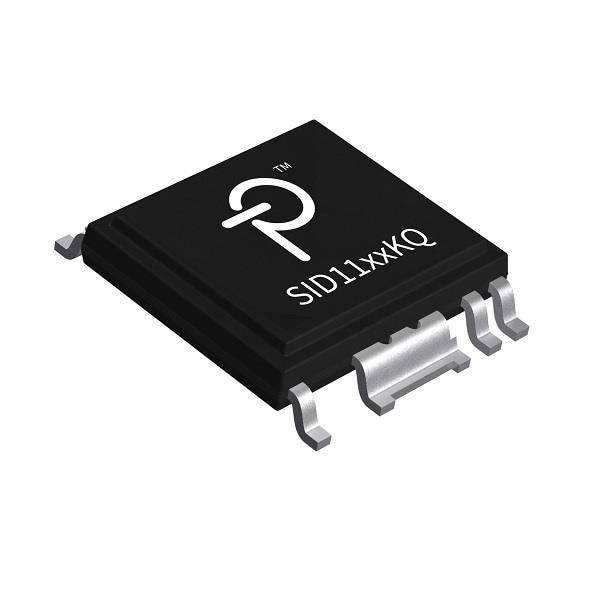

Power Integrations SID1181KQ-TL IGBT, MOSFET Gate Drivers 8A 750V Reinforced 75kHz 260ns AEC-Q100

Shutdown: No Shutdown

Fall Time: 150 ns

Rise Time: 150 ns

Logic Type: CMOS

Technology: Si

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 8 A

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Pd - Power Dissipation: 1.79 W

Propagation Delay - Max: 330 ns, 340 ns

Operating Supply Current: 16.3 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
