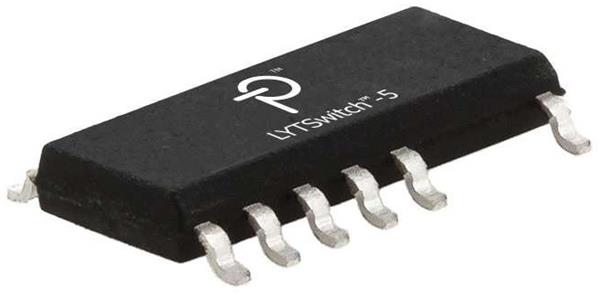

Power Integrations LYT5216D-TL LED Lighting Drivers LED Driver Non-Dimm PFC CC output, 16W
Manufacturer: Power Integrations Model: LYT5216D-TL - Contact
Width: 3.9 mm
Height: 1.69 mm
Length: 9.91 mm
Features: Constant Current
Input Voltage: 115 VAC to 230 VAC
Mounting Style: SMD/SMT
Output Current: 4 A
Number of Outputs: 1 Output
Moisture Sensitive: Yes
Number of Channels: 1 Channel
Input Voltage - Max: 230 V
Input Voltage - Min: 115 V
Operating Frequency: 40 kHz to 132.7 kHz
Supply Current - Max: 1.4 mA
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 40 C
