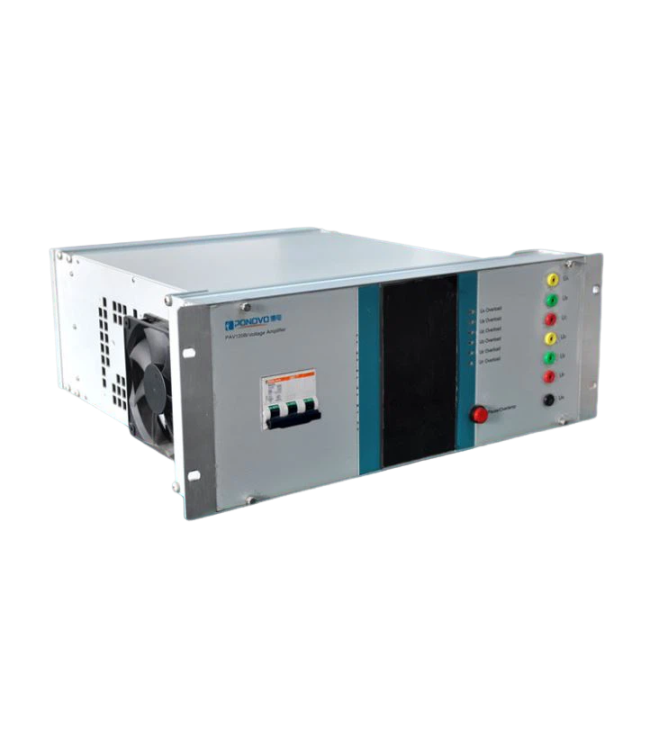

Ponovo PAV120Bi Panel-Mounted Voltage Power Amplifier (6 x 0~120V RMS; DC-5kHz±1dB)

Voltage output: 6 x 0~120V RMS

Max. output power: >60VA (120V output)

Input signal-Analog, Gain:

Standard: 0 ~ 7.07V RMS (±10Vpek), Gain: 20A/V

Option: 0 ~ 11.31V RMS (±16Vpek), Gain: 12A/V

Input signal -Digital (optional): support Aurora protocol communication

Voltage accuracy: <0.1% (5V-120V)

Voltage typical accuracy: <0.05%

Differential input impedance: 20k

Harmonic distortion ratio: ≤0.1%

Linearity: ≤0.1%

Phase accuracy: 0.2°

Frequency range: DC-5kHz±1dB

Step response: <20us

Input/output delay: <20us

Power supply: 3 phase 380V AC

Chassis: 4U 19 inches
