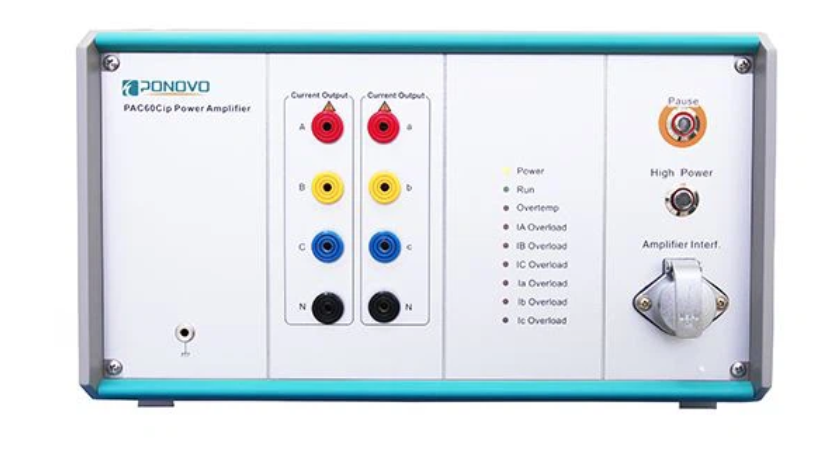

Ponovo PAC60Cip Portable Power Amplifier (6x 0~30A RMS; DC-5kHz±1dB)

Current output: 6x 0~30A RMS

Max. output power: >210VA (30A output)

Input signal, Gain:

Standard: Input signal: 0 ~ 5V RMS (±7.07Vpek), Gain: 6A/V

Option 1: Input signal: 0 ~ 7.07V RMS (±10Vpek), Gain: 4.5A/V

Option 2: Input signal: 0 ~ 11.31V RMS (±16Vpek), Gain: 3A/V

Current accuracy: 0.2%(0.5-30A)

Current typical accuracy: <0.1%

Differential input impedance: 20k

Harmonic distortion ratio: ≤ 0.2%

Linearity: ≤ 0.2%

Phase accuracy: 0.2°

Frequency range: DC-5kHz±1dB

Step response: <20us

Input/output delay: <20us

Power supply: Single phase 110/220V AC 50/60 Hz

Chassis: 4U
