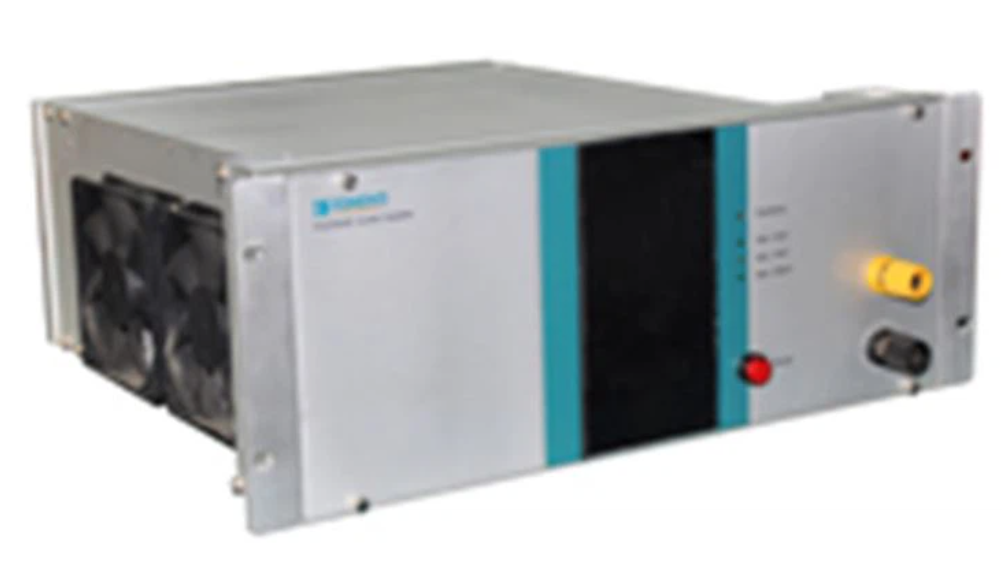

Ponovo PAC2000B Panel-Mounted Power Amplifier (0~200A RMS; DC-5kHz±1dB)

Current output: 0~200A RMS

Max. output power: > 2400VA(200A output)

Input signal-Analog: standard: 0 ~ 7.07V RMS (±10Vpek)

Input signal-Digital (optional): support Aurora protocol communication

Current accuracy: 0.2%(0.5A-200A)

Current typical accuracy: < 0.1%

Differential input impedance: 20k

Gain: 2A/V 4A/V 30A/V

Harmonic distortion ratio: <0.2%

Linearity: <0.2%

Phase accuracy: 0.2°

Frequency range: DC-5kHz±1dB

Step response: < 20us

Input/output delay: < 20us

DC power supply: PAP01

Power supply: 3 phase 380V AC 50/60 Hz

Chassis: 4U 19 inches
