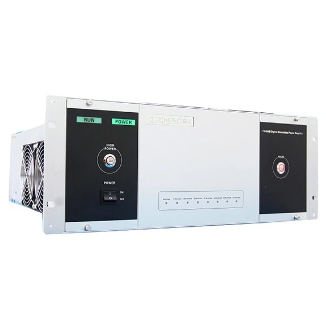

Ponovo PA460Bi-H Digital Real Time Simulation Power Amplifier

Voltage amplifier

Voltage output: 6×300V (L‐N); 1×600V (L‐L)

Max. output power: >45VA, at 6x300V; >90VA, at 3×300V; >170VA, at 1×600V

Input signal: 0~±6V RMS (±8.4Vpek)

Differential input impedance: 20kΩ

Gain: 50V/V

Voltage accuracy: <0.2% (5V‐300V)

Voltage typical accuracy: <0.1%

Harmonic distortion ratio: ≤0.1%

Linearity: ≤0.2%

Frequency range: DC‐3kHz±1dB

Step response: < 80μs

Input and output delay: < 80μs

Phase accuracy: 0.2°

Current amplifier

Max. current output: 6×32A RMS(L‐N); 3×64A RMS(2L‐N); 1×180A RMS(6L‐N)

Max. output power: 6×450VA typ. at 32A; 6×400VA guar. at 32A; 3×800VA typ. at 64A; 3×700VA guar. at 64A; 1×1200VA typ. at 180A; 1×1000VA guar. at 180A

Input Signal: 0~±7.2V RMS (±10.2Vpek)

Differential input impedance: 20kΩ

Gain: 4.5A/V

Current accuracy: 0.2% (0.5‐32A)

Current typical accuracy: <0.1%

Phase accuracy: 0.2°

Harmonic distortion ratio: ≤0.2%

Frequency range: DC-5kHz±1dB

Step response: < 20μs

Input/output delay: < 20μs

Linearity: ≤0.2%

Power supply: AC 220V/240V, 50/60Hz

Weight: 27kg

Chassis/ Dimension(W×H×D): 4U 19 inches/ 482mm×172mm×580mm

Environmental conditions

Operating temperature: -5℃~50℃

Storage temperature: -25-+70°C

Related humidity: 20%RH~85%RH

Pressure: 86 kPa~106kPa

EMC (Emission): IEC-61000-3-2/3

EMC (Immunity): IEC-61000-4-2/3/4/5/6/11

Safety: IEC/EN 61010-1:2010; UL 61010-1:2012; CAN/CSA-C22.2 No. 61010-1-12

Surrounding conditions: No dust, vibration and severe electromagnetic interference
