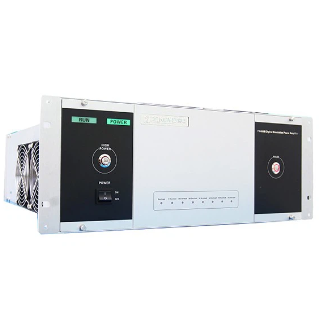

Ponovo PA460Bi-C Digital Real Time Simulation Power Amplifier

Current amplifier

Max. current output: 6×15A RMS (L-N); 3×30A RMS (2L-N); 1×90A RMS (6L-N)

Max. output power: 6×135VA at 15A; 3×270VA at 30A;1×450VA at 90A

Input Signal: 0~±5V RMS (±7.07Vpek)

Differential input impedance: 20kΩ

Gain: 3A/V

Current accuracy: 0.2%(0.5-15A)

Current typical accuracy: <0.1%

Phase accuracy: 0.2°

Harmonic distortion ratio: ≤0.2%

Frequency range: DC-5kHz±1dB

Step response: < 20μs

Input/output delay: < 20μs

Linearity: ≤0.2%

Environmental conditions

Operating temperature: -5℃~50℃

Storage temperature: -25-+70°C

Related humidity: 20%RH~85%RH

Pressure: 86 kPa~106kPa

EMC (Emission): IEC-61000-3-2/3

EMC (Immunity): IEC-61000-4-2/3/4/5/6/11

Safety: IEC/EN 61010-1:2010; UL 61010-1:2012; CAN/CSA-C22.2 No. 61010-1-12

Surrounding conditions: No dust, vibration and severe electromagnetic interference

Power supply: AC 220V/240V, 50/60Hz

Weight: 27kg

Chassis/ Dimension(W×H×D): 4U 19 inches/ 482mm×172mm×580mm
