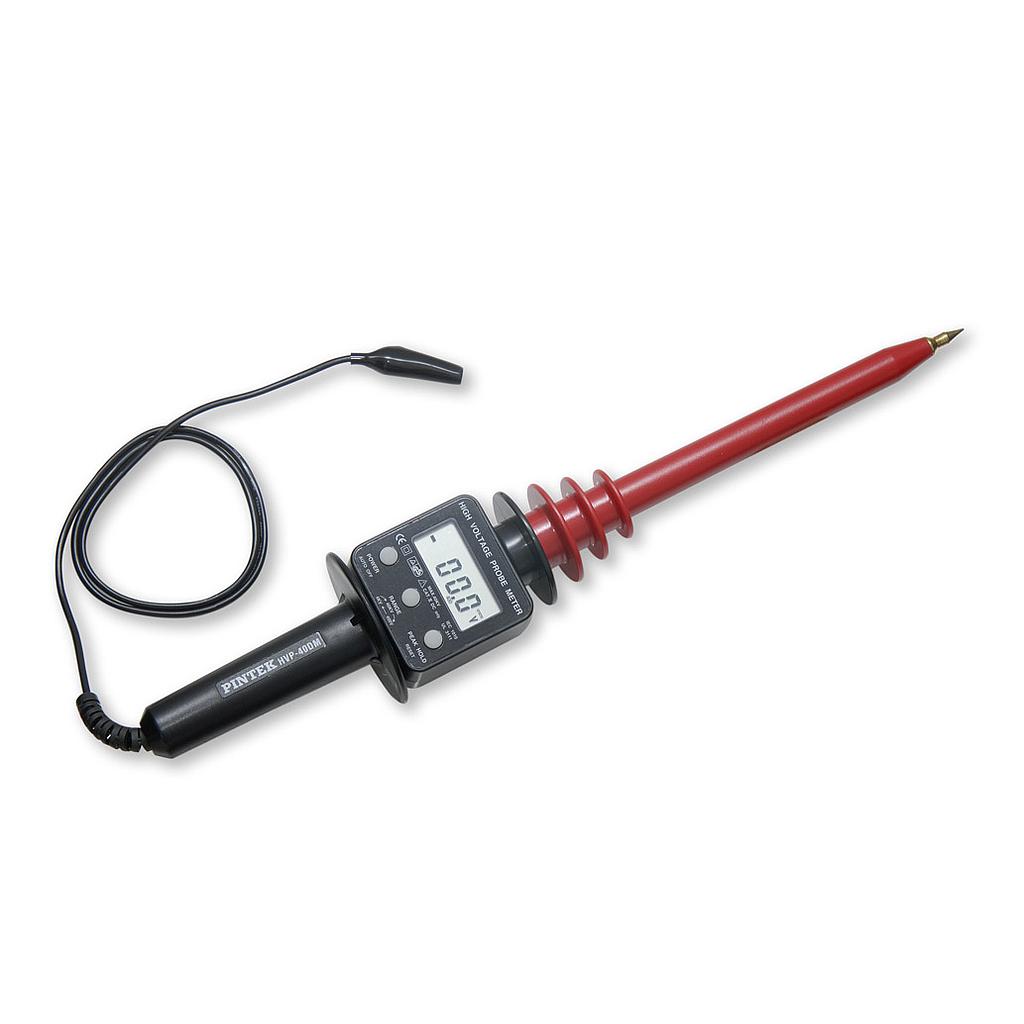

PINTEK HVP-40DM Probe

	DC 40KV CAT II Pollution 2.
	2000MΩ Impedance.
	3999 LCD display.
	Accuracy 1.0% full range.
	T.C. 100 ppm/oC
	400V/4KV/40KV, 3 range.
	Resolution 0.1V/1V/10V.
	PEAK HOLD, Auto power off.
	CE, TUV GS, UL, CUL, IEC1010

SPECIFICATIONS ( 20 ± 5℃, RH < 80% )
! WARNING !
? Before taking any measurements, first connect the alligator clip of this probe to earth ground and make sure connection is electrically good.
Input impedance:2000MΩ
Maximum operation voltage:40KV DC , CAT II , Pollution 2
Polarity:Positive / Negative
Display:3999 digital, LCD
Accuracy:Full Range ≦ 1.0% ± 2 digital
Temperature Coefficient:≦ 100ppm / ℃
Maximum loading Current:≦ 20μA
Maximum loading power:≦ 0.8 watt
Voltage Range:40KV / 4KV / 400V / 3 Range
Voltage resolution:10V / 1V / 0.1V
Power source:9V / 006P, IEC6L R1, NEDA 1604A
Low battery Indicate:≦7.3V Auto Indicate
Battery Life:About 200hr ( ALKALI )
Auto power off:About 30 mim
PEAK HOLD:≧ 400 ms
Sampling:4 Sampling / sec
Operating temperature:0 ℃ ~ + 50 ℃
Storage temperature:- 20 ℃ ~ + 70 ℃
Ground lead length:90cm ( 35 " )
Dimensions:420 L x 80ψ
Weight:360g
