PINTEK FG-30 Function Generator (3MHz ; 6 Function , 6 Range) | EMIN.CO.TH

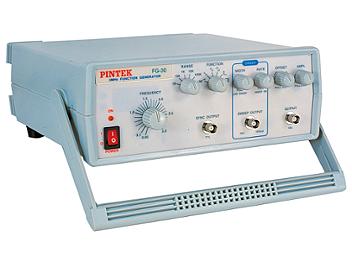

PINTEK FG-30 Function Generator (3MHz ; 6 Function , 6 Range)

Name: PINTEK FG-30 Function Generator (3MHz ; 6 Function , 6 Range)
Brand: PINTEK
Price: 276.48 USD
Availability: OutOfStock

ManufacturerPINTEK(View more products from this manufacturer)

ModelFG-30

OriginTaiwan

USD 276.48

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

6 FUNCTION ,6RANGE
0.5Hz~3MHz
LINEAR /LOG SWEEP
20Vp-p OUT

1.	GENERAL SPECIFICATIONS:
	Frequency:	0.5Hz ~ 3MHz in 6 steps, controlled by rotary switch.
	Output Waveform:	Sine, Square, Triangle, Ramp, Positive Pulse and Negative Pulse; 6 waveforms total.
	Stability:	0.1% - 15minutes after power-on.
		0.2% - 24hrs after power-on.
	DC Offset:	Continuous Adjustment, ?10V at no-load or ?5V at 50 load.
	Limits of Operation:	0℃~40℃,10~80%R.H.
	Storage Environment:	-20℃~70℃,0~90%R.H.
	Power source:	AC 115V (±10%)50/60HZ,FUSE:600mA
		AC 230V (±10%)50/60HZ,FUSE:300mA
	Power Consumption:	25W
	Dimensions:	27.5 x 9.0 x.30.0 cm
	Weight:	2.5Kg Net.
	Accessory:	Power cord, manual.

2.	RAMP WAVE:
	Frequency:	0.5Hz - 2.5MHz
	Symmetry:	80% (rise wave) to 20% (fall wave), < 5%, 1Hz ~ 100KHz.
	Rise Wave Linearity:	< 2%, 1Hz - 100KHz.

3.	TRIANGLE WAVE:
	Frequency:	0.5Hz - 3MHz.
	Symmetry:	50% (rise wave) to 50% (fall wave), < 2%, 1Hz ~ 100KHz.
	Linearity:	< 1%, 1Hz ~ 100KHz.

4.	SINE WAVE:
	Frequency:	0.5Hz ~ 3MHz.
	Distortion:	< 2%, 1Hz ~ 100KHz.
	Harmonic Ratio:	< 30dB, 100KHz ~ 3MHz.
	Frequency Response:	< 0.1dB up to 100KHz.
		< 1dB 100KHz to 3MHz.

5.	SQUARE WAVE:
	Frequency:	0.5Hz ~ 3MHz.
	Symmetry:	50% (positive half) to 50% (negative half), < 2%, 1Hz ~ 100KHz.
	Rise Time:	< 60ns.

6.	POSITIVE PULSE:
	Frequency:	0.5Hz ~ 2.5MHz.
	Width:	0.4sec ~ 100ns continuous adjustment.
	Symmetry:	20% to 80%, < 5%, 1Hz ~ 100KHz.
	Rise Time:	< 60ns.

7.	NEGATIVE PULSE:
	Frequency:	0.5Hz ~ 2.5MHz.
	Width:	0.4sec ~ 100ns.
	Symmetry:	80% to 20%, < 5%, 1Hz ~ 100KHz.
	Fall Time:	< 60ns.

8.	MAIN OUTPUT:
	Output Impedance:	50Ω, < 2% Accuracy.
	Max. output:	20 Vp-p (No load), ±1V
		10 Vp-p (50Ω load),±0.5V
	Min. output:	0.1Vp-p (No load) and 0.05V (50Ω load)
	Attenuator:	one -20dB switch, < 2% Accuracy.

9.	SYNCHRONOUS OUTPUT:
	Output Impedance:	50Ω, < 2% Accuracy.
	Output Level:	TTL level, > 3Vp-p fixed amplitude.
	Fanout:	> 20.
	Rise Time:	< 30ns.

10.	VCF INPUT:
	Input Impedance:	0 ~ 10V.
	Input Frequency:	DC ~ 1KHz.
	Input Frequency Variance:	1:1 to 1:1000.

11.	SWEEP SYNCHRONOUS OUTPUT:
	Output Impedance:	1KHz, < 20%.
	Output Waveform:	Linear or Log Sweep Ramp Wave.
	Output Amplitude:	10Vp-p (No load) or 5Vp-p (1KΩ load)
	Output Frequency:	Continuous adjustment, 0.2Hz ~ 100Hz.

12.	SWEEP GENERATOR:
	Sweep Form:	Linear or Log switchable.
	Sweep Speed:	5sec ~ 10ms, continuous adjustment.
	Sweep Width:	1:1 ~ 1:100
