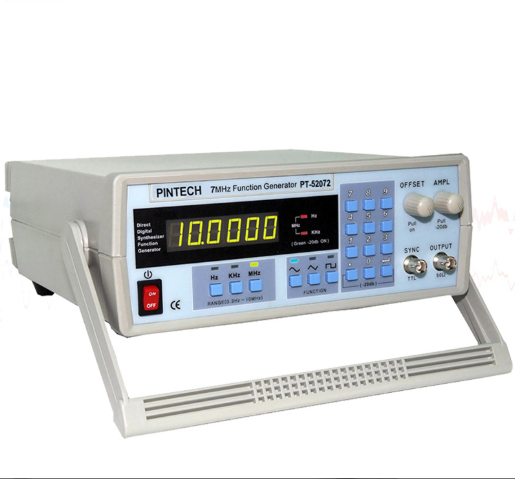

Pintech PT-52072 Function generator (0.3Hz~7MHz, 8 ranges, 3 waveforms)

Display: 6digits 0.56" Red LED

Frequency (Sins, Square, Triangle): DC-0.3Hz~7MHz

Range key: 3 ranges（Hz，kHz，Mhz）

Function wave: 3 function(Sins, Square, Triangle)

Frequency:

Stability: ±10PPM

Accuracy: ±10PPM+1 digit

Aging: ±1PPM/1year

Sine wave:

Harmonic distortion: -55dB to 200kHz,-30dB to 7MHz

Flatness: ±0.3dB to 1MHz，±3dB to 7MHz

Triangle wave: ≥98% to 100kHz,≥90% to 7MHz

Square wave:

Level: ±2% to 1MHz,±10% to 7MHz

Rise time: ≦25nS

SYNC output:

Level: ≥3V to 7MHz

Rise time: ≦25nS

Amplitude:

Max. level: 20Vp-p（1MΩ load），10Vp-p（50Ω load

Min. level: 20mVp-p（1MΩ load），10mVp-p（50Ω load

Attenuator: -20dBX2（-40dB）

DC offset: Fix or ADJ（±10V at 1MΩload，±5V at 50Ωload）

RS232 or USB: Built-in

PC control: Frequency,waveform,attenuatorx1

Dimension / net weight: 275(W) X 90(H) X 300(D) mm
