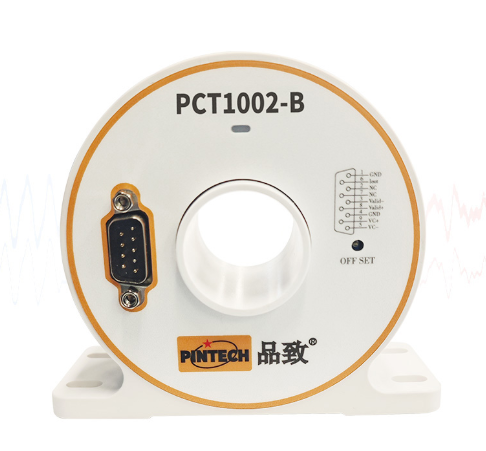

Pintech PCT1002-B Current sensors (200kHz, ±1000A)
ManufacturerPintech(View more products from this manufacturer)
ModelPCT1002-B
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Maximum measurement of continuous DC current IPN DC: ±1000A
Maximum measurement of continuous RMS current IPN: 700A
Measure the current range IPM(DC): ±1200A
Current transfer ratio KN: 1500:1
Output current IS: ±666.67mA
Precision (DC): 10ppm
Bandwidth BW(±3dB): 200kHz
Maximum overload capacity @ single pulse 100ms: ±1200A
Power supply voltage: ±15V
Power consumption (IPwr): ±690mA
Maximum measuring aperture: 40mm
Secondary interface: DB9
