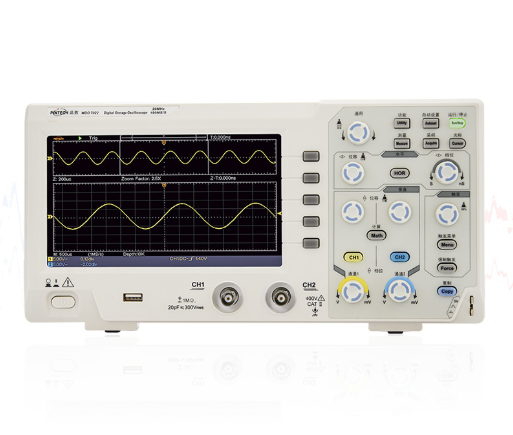

Pintech MDO 7022 Benchtop oscilloscope (2 channels, 20MHz, 100MS/s)

Bandwidth: DC-20MHz

Rea-time sampling rate: 100MS/s

Storage depth: 10k

Vertical resolution: 8bit

Time base accuracy (s/div): 5ns/div - 1000s/div, step by 1-2-5

Rise time（Typical values on BNC）: ≤17.5ns

Channel: 2

Display: 7" color LCD, 800 x 480 pixels

Input impedance: 1MΩ ± 2%, and 20pF±5pF in parallel

Isolation between channels: 50Hz : 100 : 1, 10MHz : 40 : 1

Input voltage: 400V (PK - PK) (DC+AC, PK - PK)

DC gain accuracy: ±3%

Probe attenuation coefficient: 1X, 10X, 100X, 1000X

Low frequency response (AC coupling): ≥10Hz (BNC, -3dB)

Waveform interpolation: sin (x) / x

Time interval（△T) accuracy of measurement:

Single: ±(1sample interval time+ 100ppm x reading + 0.6ns)

Average >16 : ±(1sample interval time + 100ppm x reading + 0.4ns)

Input coupling: DC, AC , GND

Vertical sensitivity: 5mV/div - 5V/div (at input)

Trigger type: Edge, Video

Trigger mode: Auto, Normal, and Single

Cursor measurement: Voltage difference between cursors (△V), time difference between cursors (△T)

Waveform calculation: ＋, －, x, ÷, invert, FFT

Waveform storage: 16 sets of waveforms

Standard interface: USB host, USB device

Power supply: 100V - 240V AC, 50/60Hz, CAT II
