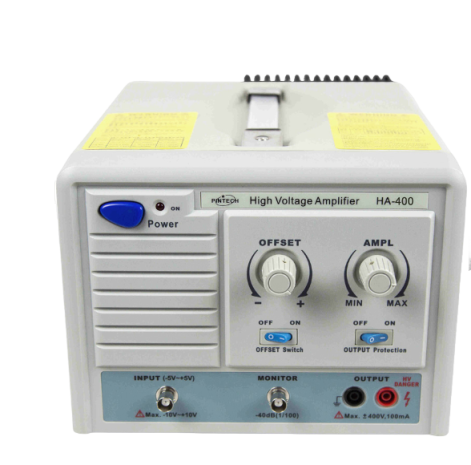

Pintech HA-400 High Voltage Amplifier (600kHz, 400Vp-p)

Output Voltage( DC Max): 200V DC

Output Voltage(AC Max): 400Vp-p

DC Current(Max): 80mA

AC Current(Max): 160mAp-p

Output Power(Max): 16VA

Frequency response (Bandwidth): 600kHz/200Vp-p

Slew Rate: 300V/μs

Output impedance: 50Ω

Protect resistor: 4kΩ/40watt

Safe Loading: ≧2.5kΩ/400Vp-p

Input Voltage upper limit: 0~5Vp-p/20Vp-p

AMPL: 0~90 (10 turn knob)

OFFEST: 0 or± 200V (10-turnknob switch)

Monitor: 100:1

Output protection:

1. Output dedicated FUSE

2. Protection SW (switch)

Weight: 5.2kg

size: 310*270*95mm
