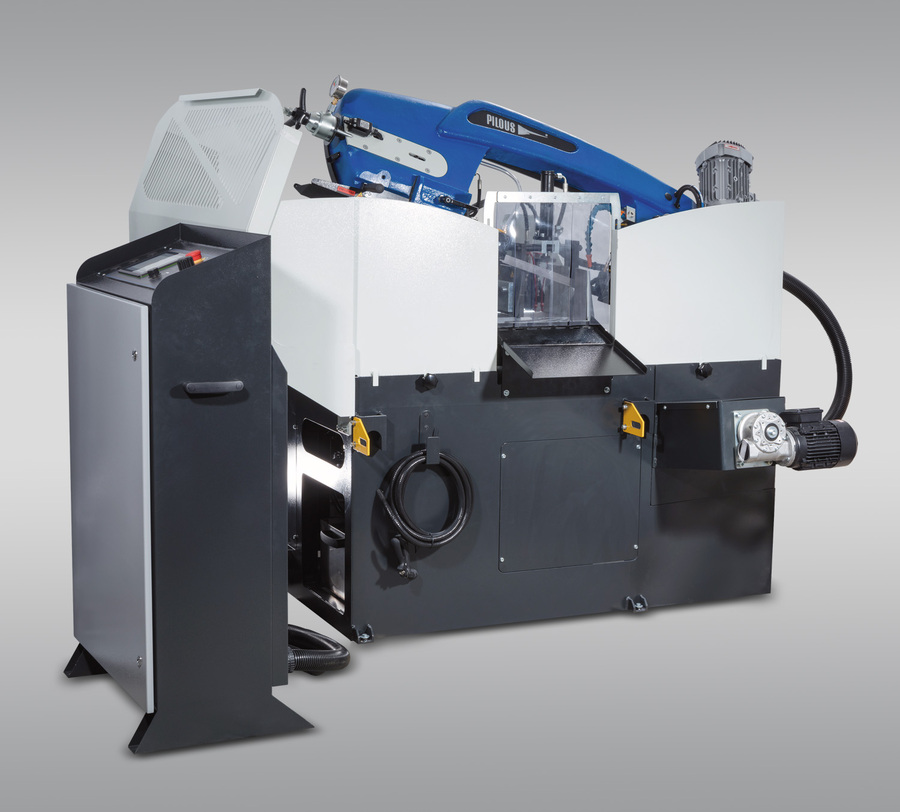

Pilous Dynamic 3.0 Bandsaw for metal - CNC automatic (15-90 m/min)

Cutting angle:

-  At 90°

Round: 300mm

Square: 285mm

Rectangular: 300 x 220mm

-  At +45°

Round: 240mm

Square: 220mm

Rectangular: 235 x 150mm

Main motor: 400 V, 50 Hz, 2.2 kW

Pump motor: 400 V, 50 Hz, 0.12 kW

Hydraulic motor unit: 400 V, 50 Hz, 0.55 kW

Feed rate of material: 1.8 / 4.2 / 6.6 m/min.

Saw blade speed: 15-90 m/min.

Working height of vice: 870 mm

Hydraulic system oil: cca 26 l (ISO 6743/4-HM, DIN 51 524 part 2-HLP

Coolant tank: cca 35 l

Machine weight: 940 kg

Datasheet

Dimension drawing
