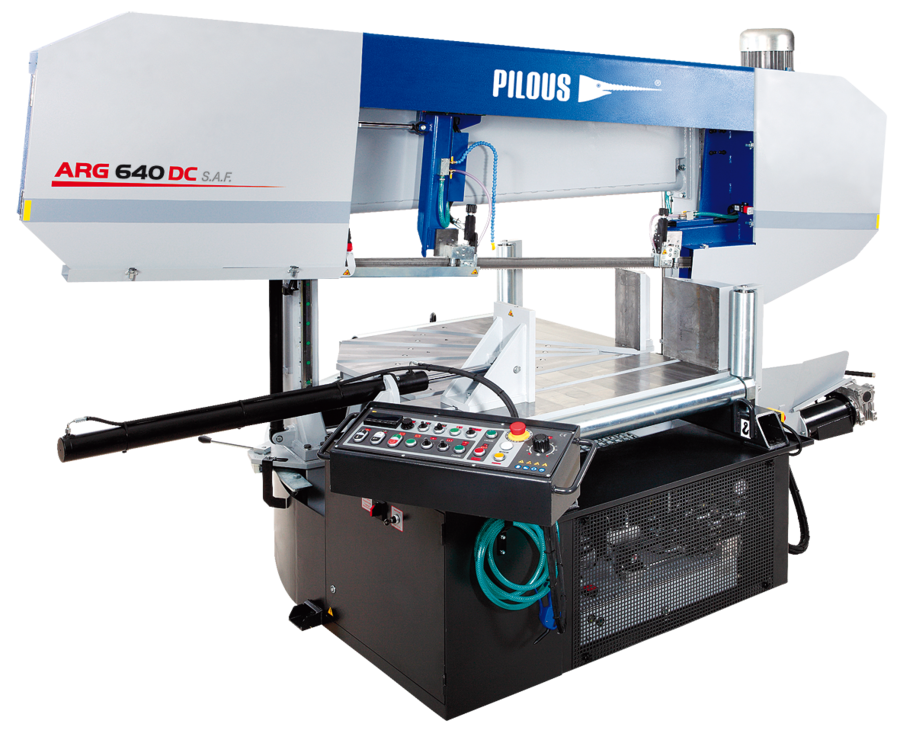

Pilous ARG 640 DCT S.A.F. Band saw for metal - Dual-column Semi-automatic (15-90 m/min)

Cutting angle:

-  At 90°

Round: 640mm

Square: 550mm

Rectangular: 1100 x 550mm

-  At -45°

Round: 640mm

Square: 550mm

Rectangular: 710 x 550mm

-  At -60°

Round: 375mm

Square: 375mm

Rectangular: 375 x 550mm

Main motor: 400 V, 50 Hz, 7.5 kW

Pump motor: 400 V, 50 Hz, 0.12 kW

Hydraulic motor unit: 400 V, 50 Hz, 1.1 kW

Saw blade speed: 15-90 m/min.

Working height of vice: 800 mm

Hydraulic system oil: cca 26 l (ISO 6743/4-HM, DIN 51 524 part 2-HLP)

Coolant tank: cca 100 l

Machine dimensions (min.): 3800 x 2500 x 2050 mm

Machine dimensions (max.): 3800 x 2700 x 2700 mm

Machine weight: 4200 kg
