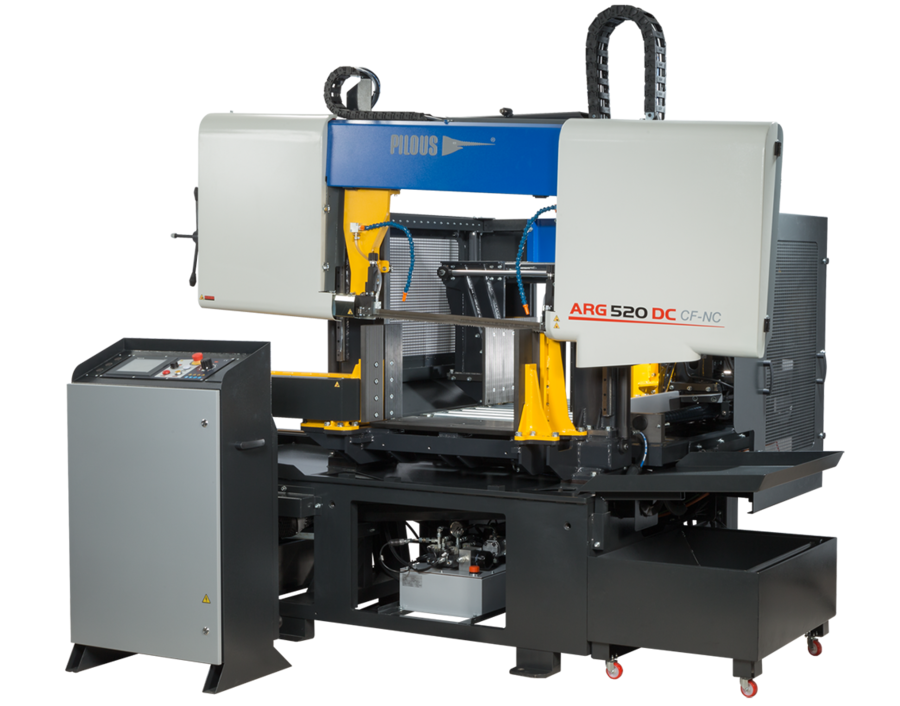

Pilous ARG 520 DC CF-NC Automat Band saw for metal - Dual-column CNC automatic (15-90 m/min)

Cutting angle:

-  At 90°

Round: 520mm

Square: 500mm

Rectangular: 700 x 480mm

Main motor: 400 V, 50 Hz, 4 kW

Servo motor of the feed: 400 V, 50 Hz, 4,5 kW

Pump motor: 400 V, 50 Hz, 0,12 kW

Hydraulic motor unit: 400 V, 50 Hz, 1 kW

Feed rate of material: 1.6 / 2.5 / 3 m/min.

Saw blade speed: 15-90 m/min.

Working height of vice: 920 mm

Hydraulic system oil: cca 26 l (ISO 6743/4-HM, DIN 51 524 part 2-HLP)

Coolant tank: cca 35 l

Machine weight: 3100 kg
