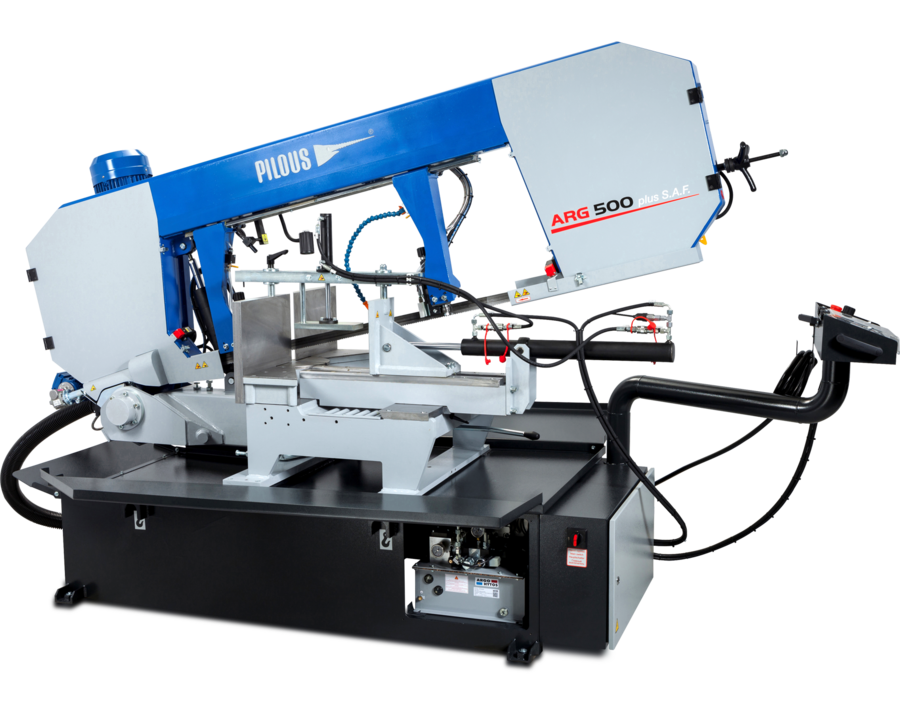

Pilous ARG 500 plus S.A.F. Band saw for metal - hydraulic semi-automatic (15-90 m/min)

Cutting angle:

-  At 90°

Round: 500mm

Square: 450mm

Rectangular: 620 x 450mm

-  At -45°

Round: 500mm

Square: 440mm

Rectangular: 440 x 450mm

-  At +45°

Round: 500mm

Square: 440mm

Rectangular: 430 x 450mm

-  At +/-60°

Round: 350mm

Square: 310mm

Rectangular: 310 x 400mm

Main motor: 400 V, 50 Hz, 4 kW

Pump motor: 400 V, 50 Hz, 0.12 kW

Hydraulic motor unit: 400 V, 50 Hz, 0.55 kW

Saw blade speed: 15-90 m/min.

Working height of vice: 870 mm

Hydraulic system oil: cca 26 l (ISO 6743/4-HM, DIN 51 524 part 2-HLP)

Coolant tank: cca 35 l

Machine weight: 1530 kg
