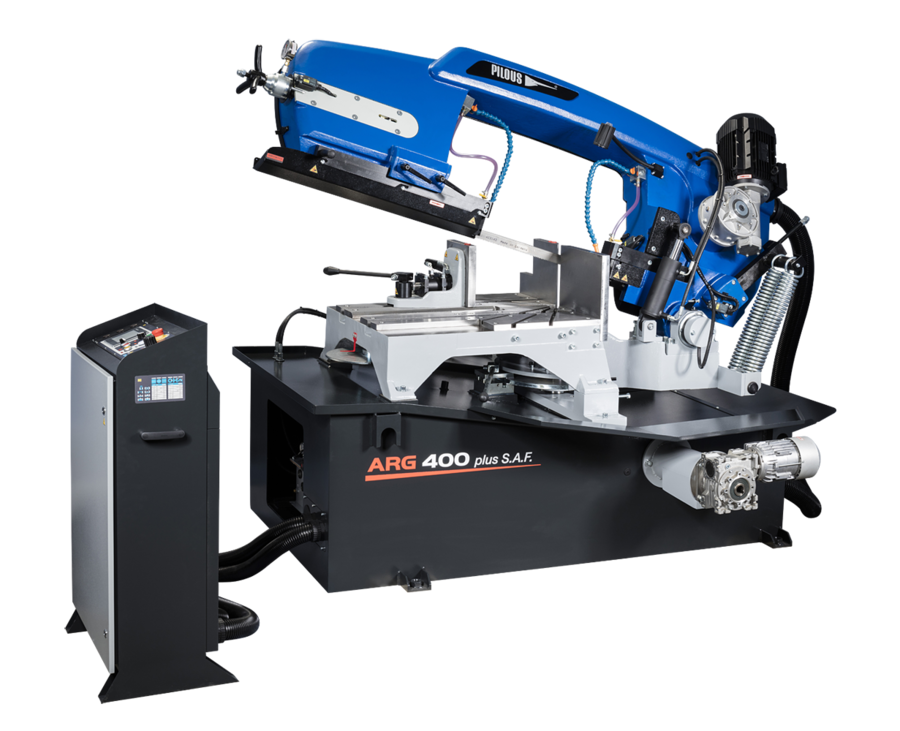

Pilous ARG 400 plus S.A.F. Band saw for metal - hydraulic semi-automatic (15-90 m/min)

Cutting angle:

At 90°

Round: 400mm

Square: 400mm

Rectangular: 460 x 300mm

At -45°

Round: 290mm

Square: 250mm

Rectangular: 300 x 170mm

At +45°

Round: 300mm

Square: 300mm

Rectangular: 300 x 200mm

At +60°

Round: 200mm

Square: 200mm

Rectangular: 200 x 200mm

Main motor: 400 V, 50 Hz, 3 kW

Pump motor: 400 V, 50 Hz, 0.12 kW

Hydraulic motor unit: 400 V, 50 Hz, 0.55 kW

Saw blade speed: 15-90 m/min.

Working height of vice: 795 mm

Hydraulic system oil: cca 26 l (ISO 6743/4-HM, DIN 51 524 část 2-HLP)

Coolant tank: cca 35 l

Machine weight: 1225 kg
