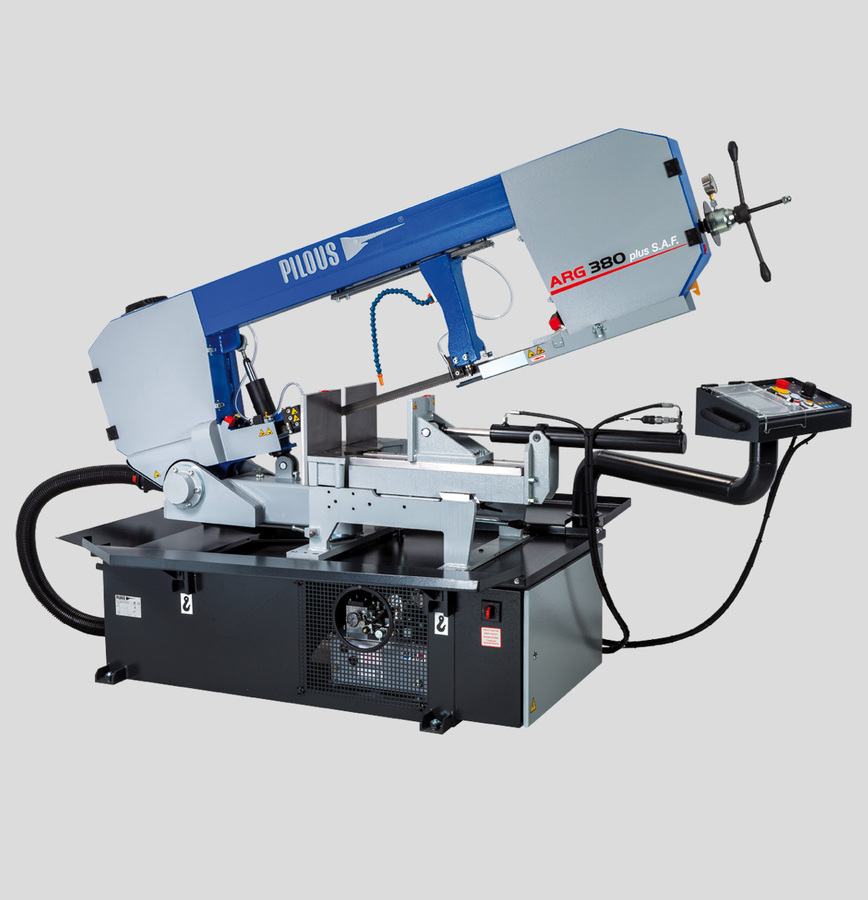

Pilous ARG 380 plus S.A.F. Band saw for metal - hydraulic semi-automatic (15-90 m/min)

Cutting angle:

At 90°

Round: 380mm

Square: 340mm

Rectangular: 510 x 340mm

At -45°

Round: 380mm

Square: 340mm

Rectangular: 350 x 340mm

At +45°

Round: 380mm

Square: 340mm

Rectangular: 350 x 340mm

At +60°

Round: 270mm

Square: 255mm

Rectangular: 235 x 340mm

Main motor: 400 V, 50 Hz, 3 kW

Pump motor: 400 V, 50 Hz, 0,12 kW

Hydraulic motor unit: 400 V, 50 Hz, 0,55 kW

Saw blade speed: 15-90 m/min.

Working height of vice: 810 mm

Hydraulic system oil: cca 26 l (ISO 6743/4-HM, DIN 51 524 part 2-HLP)

Coolant tank: cca 35 l

Machine weight: 1025 kg
