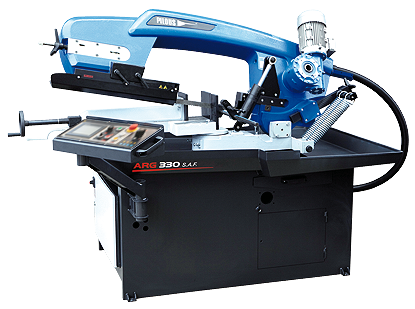

Pilous ARG 330 S.A.F. Band saw for metal - hydraulic semi-automatic (15-90 m/min)

Cutting angle:

At 90°

Round: 330mm

Square: 320mm

Rectangular: 400 x 200mm

At +45°

Round: 250mm

Square: 230mm

Rectangular: 250 x 170mm

At +60°

Round: 165mm

Square: 150mm

Rectangular: 150 x 150mm

Main motor: 400 V, 50 Hz, 3 kW

Pump motor: 400 V, 50 Hz, 0,12 kW

Hydraulic motor unit: 400 V, 50 Hz, 0,55 kW

Saw blade speed: 15-90 m/min.

Working height of vice: 940 mm

Hydraulic system oil: cca 25 l (ISO 6743/4-HM, DIN 51 524 part 2-HLP)

Coolant tank: cca 35 l

Machine dimensions (min.): 1350 x 2200 x 1750 mm

Machine dimensions (max.): 2050 x 2600 x 2150 mm

Machine weight: 665 kg
