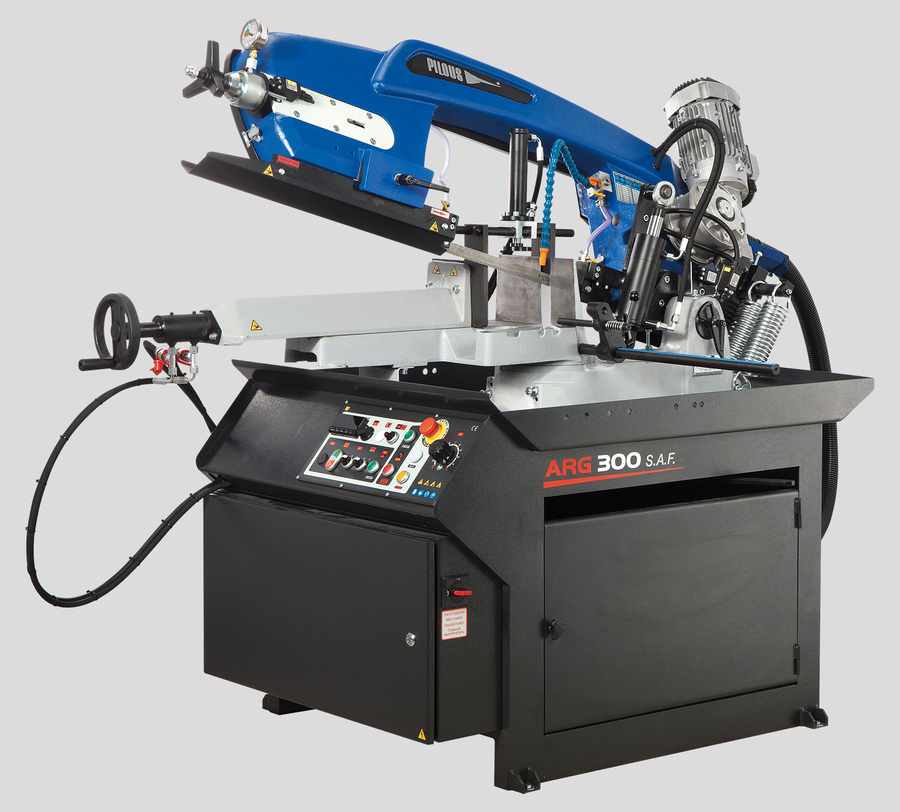

Pilous ARG 300 S.A.F. Band saw for metal - hydraulic semi-automatic (15-90 m/min)

Cutting angle:

At 90°

Round: 300mm

Square: 290mm

Rectangular: 375 x 190mm

At +45°

Round: 240mm

Square: 225mm

Rectangular: 240 x 160mm

At +60°

Round: 155mm

Square: 150mm

Rectangular: 150 x 150mm

Main motor: 400 V, 50 Hz, 2,2 kW

Pump motor: 400 V, 50 Hz, 0,05 kW

Hydraulic motor unit: 400 V, 50 Hz, 0,55 kW

Saw blade speed: 15-90 m/min.

Working height of vice: 910 mm

Hydraulic system oil: cca 25 l (ISO 6743/4-HM, DIN 51 524 part 2-HLP)

Coolant tank: cca 15 l

Machine weight: 550 kg

Datasheet

Dimension drawing
