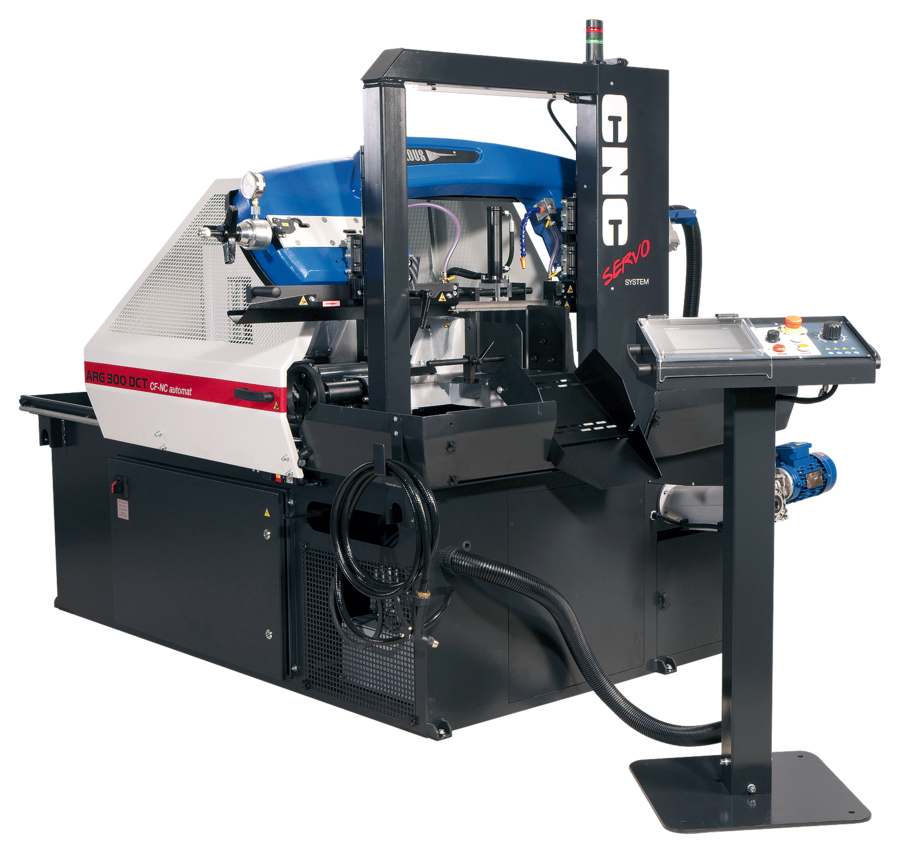

Pilous ARG 300 DCT CF-NC Automat Band saw for metal - Dual-column CNC automatic (15-90 m/min)

Cutting angle:

-  At 90°

Round: 300mm

Square: 290 x 290mm

Rectangular: 360 x 295mm

-  At +45°

Round: 245mm

Square: 245 x 245mm

Rectangular: 245 x 250mm

Main motor: 400 V / 50 Hz / 2.2 kW

Pump motor: 400 V / 50 Hz / 0.05 kW

Hydraulic motor unit: 400 V  / 50 Hz / 0.55 kW

Servo motor of the feed: 1.2 kW

Feed rate of material: 1.6  / 2.5 / 3 m/min.

Saw blade speed: 15-90 m/min.

Working height of vice: 850 mm

Hydraulic system oil: cca 26 l (ISO 6743/4-HM, DIN 51 524 part 2-HLP

Coolant tank: cca 35 l

Machine dimensions (min.): 2100 x 1700 x 1600 mm

Machine dimensions (max.): 2700 x 2215 x 1780 mm

Machine weight: 1270 kg

Datasheet
