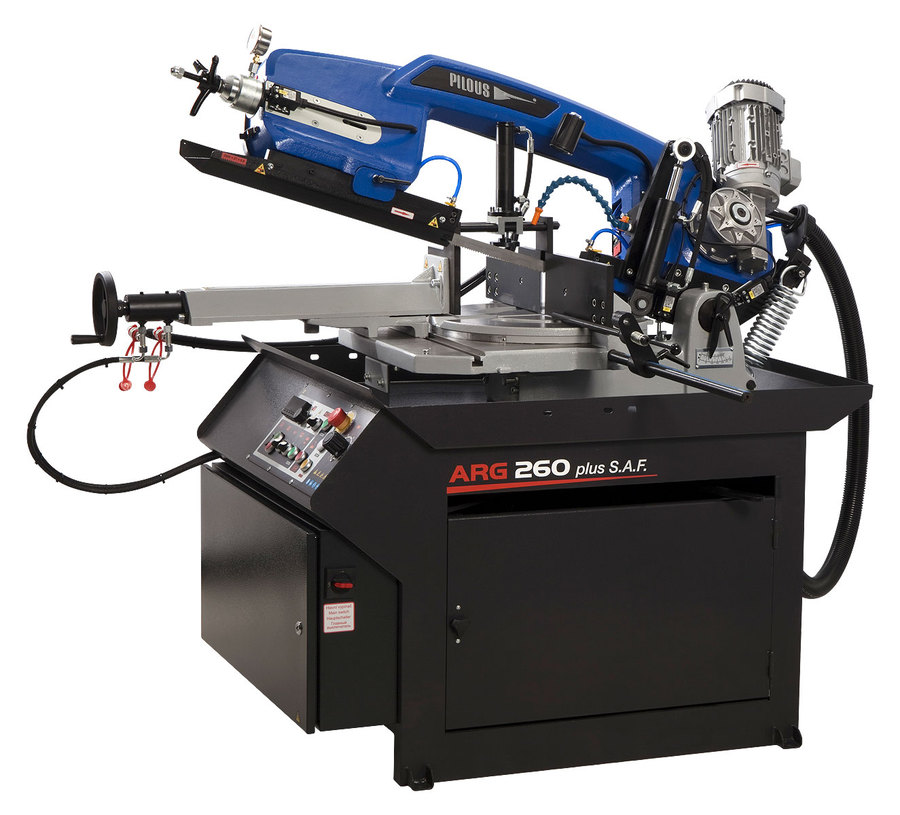

Pilous ARG 260 plus S.A.F. Bandsaw for metal - hydraulic semi-automatic (15-90 m/min)

Cutting angle:

At 90°

Round: 260mm

Square: 255mm

Rectangular: 300 x 200mm

At -45°

Round: 175mm

Square: 145mm

Rectangular: 190 x 100mm

At +45°

Round: 200mm

Square: 185mm

Rectangular: 185 x 200mm

At +60°

Round: 125mm

Square: 120mm

Rectangular: 125 x 120mm

Main motor: 400 V, 50 Hz, 2.2 kW

Pump motor: 400 V, 50 Hz, 0.05 kW

Hydraulic motor unit: 400 V, 50 Hz, 0.55 kW

Saw blade speed: 15-90 m/min.

Working height of vice: 910 mm

Hydraulic system oil: cca 25 l (ISO 6743/4-HM, DIN 51 524 part 2-HLP)

Coolant tank: cca 15 l

Machine weight: 580 kg
