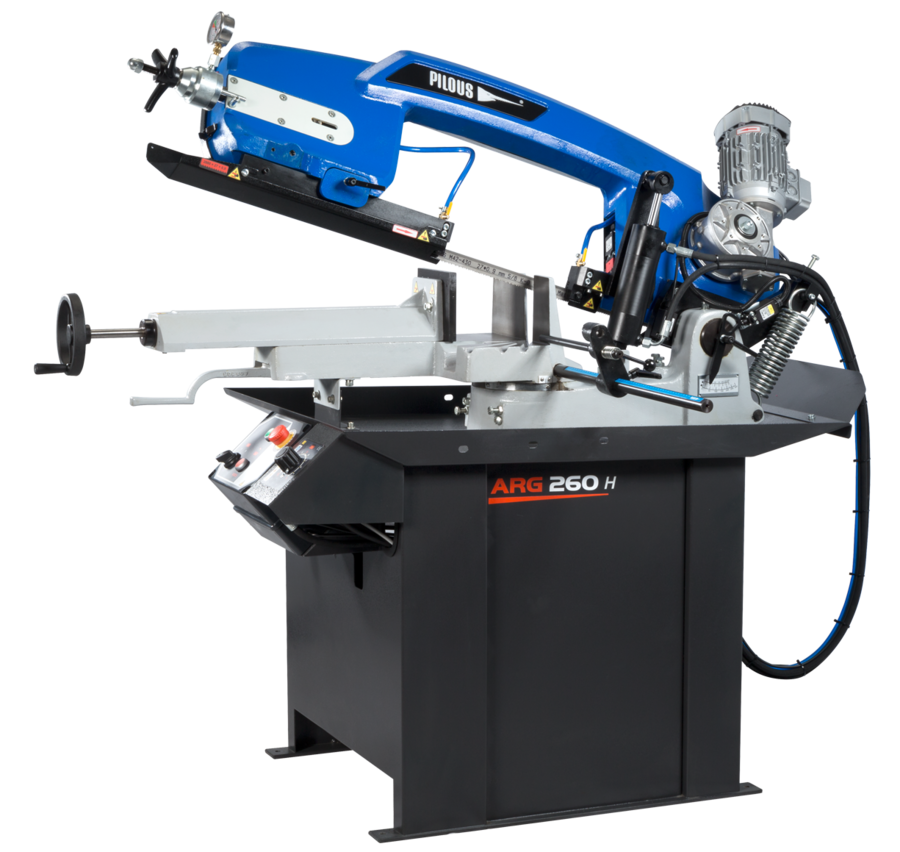

Pilous ARG 260 H Bandsaw for metal - hydraulic-gravitation (35/70 m/min, 910 mm)

Cutting angle:

At 90°

Round: 260mm

Square: 255mm

Rectangular: 300 x 200mm

At +45°

Round: 200mm

Square: 185mm

Rectangular: 185 x 200mm

At +60°

Round: 125mm

Square: 120mm

Rectangular: 125 x 120mm

Main motor: 400 V, 50 Hz, 0.9/1.4 kW

Pump motor: 400 V, 50 Hz, 0.05 kW

Hydraulic motor unit: 400 V, 50 Hz, 0.18 kW

Saw blade speed: 35/70 m/min.

Working height of vice: 910 mm

Hydraulic system oil: cca 6 l (ISO 6743/4-HM, DIN 51 524 část 2-HLP)

Coolant tank: cca 15 l

Machine weight: 340 kg

Datasheet

Dimension drawing
