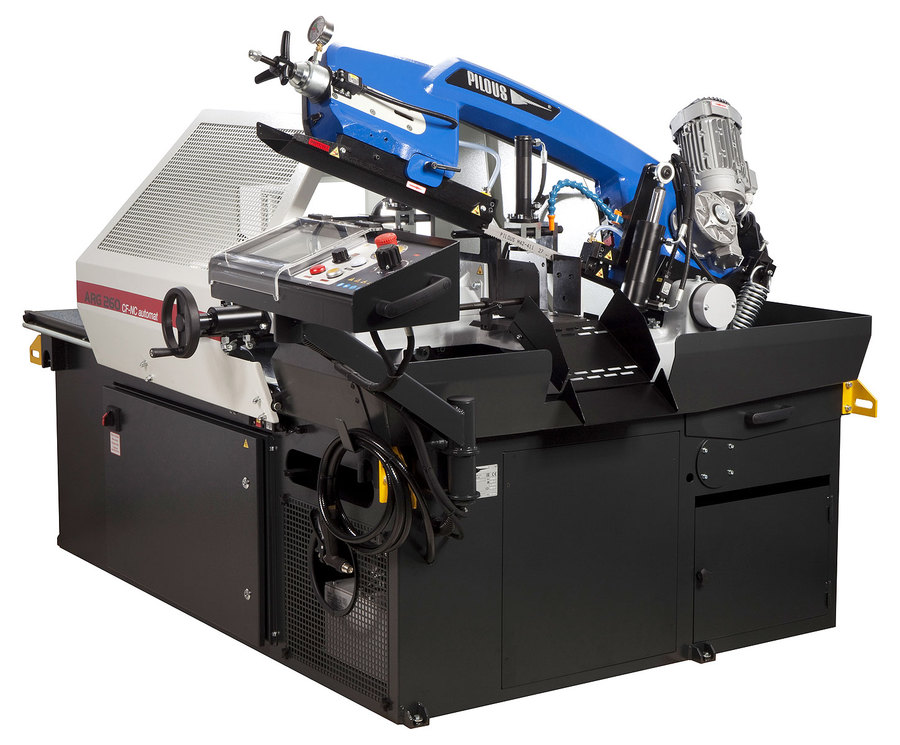

Pilous ARG 260 CF-NC automat Bandsaw for metal - CNC automatic (15-90 m/min)

Cutting angle:

-  At 90°

Round: 260mm

Square: 245mm

Rectangular: 245 x 250mm

-  At +45°

Round: 180mm

Square: 170mm

Rectangular: 180 x 120mm

Main motor: 400 V, 50 Hz, 2,2 kW

Pump motor: 400 V, 50 Hz, 0,05 kW

Hydraulic motor unit: 400 V, 50 Hz, 0,55 kW

Servo motor of the feed: 400 V, 50 Hz, 1,3/2 kW

Feed rate of material: 1,6 / 2,5 / 3 m/min.

Saw blade speed: 15-90 m/min.

Working height of vice: 830 mm

Hydraulic system oil: cca 26 l (ISO 6743/4-HM, DIN 51 524 part 2-HLP

Coolant tank: cca 35 l

Machine weight: 912 kg

Datasheet

Dimension drawing
