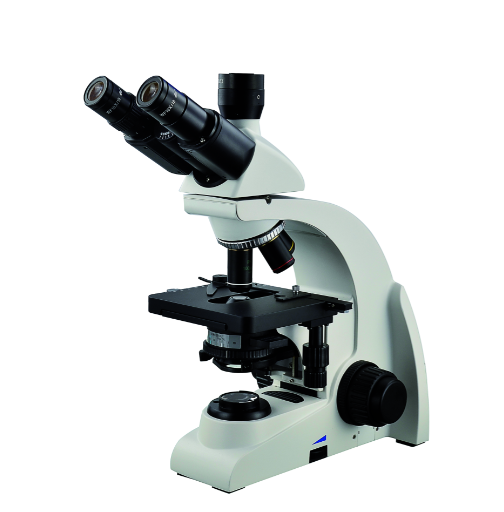

PHYWE MIC-231 Trinocular Microscope (1000x)

Function and Applications:

• Modern trinocular mikroscope for a broad range of applications and users with exceedingly good price/perfomance ratio.

Benefits:

• Ideal as teacher microscope

• 1000x magnification

• Mechanical stage

• Long-life and very bright LED illumination

• Resists to tilting on the table

Equipment and Technical Data:

• Trinocular microscope with 1000x magnification and infinity optics

• UCIS Infinity independent achromatic optical system

• Siedentopf viewing head, inclined 30°, 360° rotatable, 48-75 mm interpupillary distance, +/-5 diopter adjustment

• WF10/18 mm Plan eyepieces with high eye point

• Quintuple nosepiece with infinity achromatic objectives 4x, 10x, 40x(S) and 100x(S) objectives

• Abbe condenser N.A. 1.25 with iris diaphragm, phase-contrast slide holder, handwheel lift, condenser bracket with condenser center adjustment

• Mechanical stage size: 141 x 131 mm, moving range 78 x 53 mm

• Low position coaxial coarse and fine focus mechanism with markings on the fine focus knobs

• Illumination: 3W LED (color temperature 5000 K), adjustable

• Integrated power supply 100…240 V, 50/60 Hz

• Includes C-mount adapter (1X) and dust cover

• Dimensions: 39 cm x 23 cm x 28 cm

• Weight: 8.6 kg
