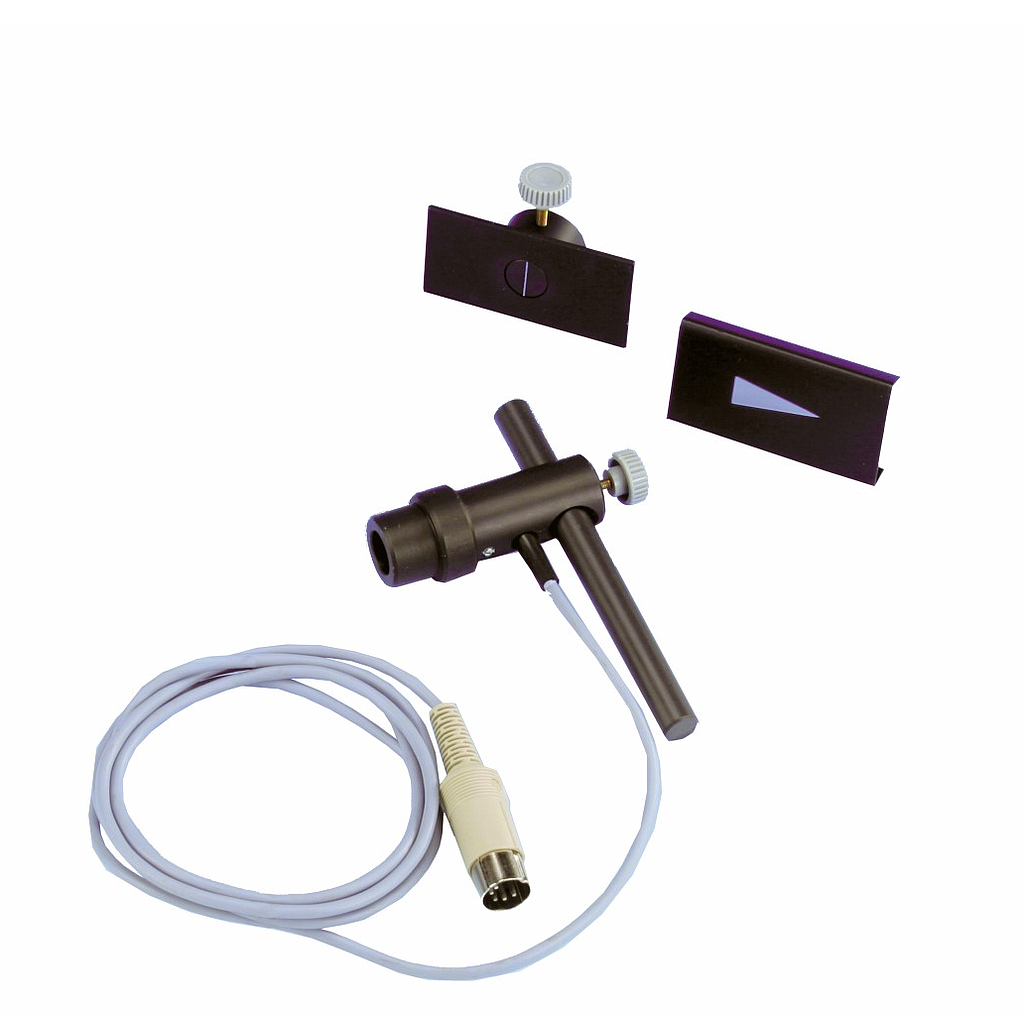

PHYWE 08735-00 Si-Photodetector with Amplifier

- Function and Applications:

Silicon diode with high signal-to-noise ratio for photometric measurements where there is a high degree of interference.

- Equipment and Technical Data:

• Movable holder for diode on round mounting rod with lens for incoming light

• Removable slot filter

• 1.5/m lead with diode plug for connecting to the required control unit

• Spectral range: 390 nm-1150 nm

• Maximum sensitivity: 900 nm

• Voltage when dark: 0.75 mV

• Sensitivity: (900 nm) 860 mV/µW/cm²

• Band width: 65 kHz

• Slot filter: d= 0.3 mm

• Mounting rod: l=110 mm, diam.=10 mm

- Needed in addition:

08735-99 Cotrol Unit for Si-Photodetector

- Scope of delivery:

Support rod, stainless steel, different lenghts | Length: 250 mm: 02031-00, 1
