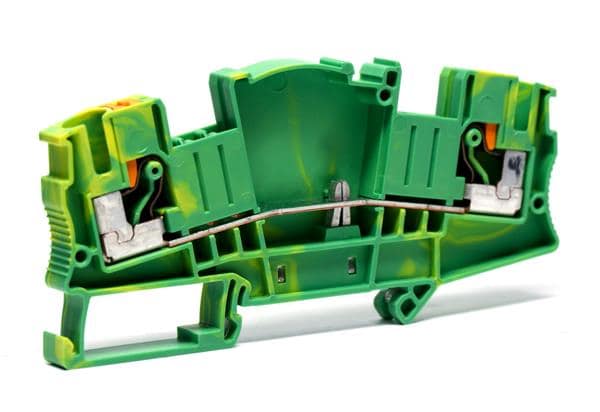

Color: Green / Yellow
Pitch: 3.5 mm
Width: 8.2 mm
Height: 49.6 mm, 57.1 mm
Length: 100.8 mm
Unit Weight: 26.198 g
Mounting Style: DIN Rail
Number of Rows: 1 Row
Wire Gauge Max: 10 AWG
Wire Gauge Min: 20 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 20 AWG to 10 AWG
Connection Method: Push-In
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
