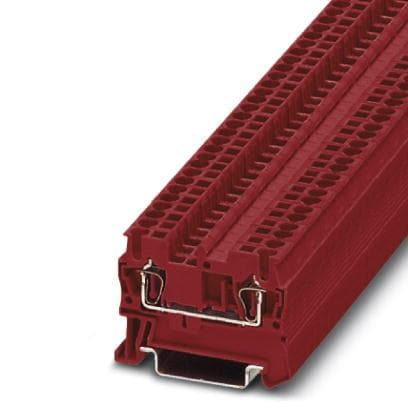

Color: Red
Width: 5.2 mm
Height: 44 mm
Length: 48.5 mm
Unit Weight: 5.440 g
Current Rating: 24 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 800 V
Wire Gauge Max: 12 AWG
Wire Gauge Min: 28 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 28 AWG to 12 AWG
Connection Method: Spring Cage
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
