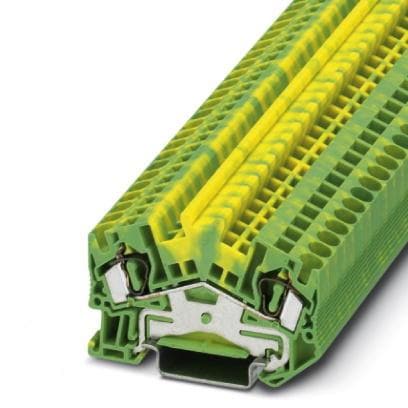

Color: Green, Yellow
Width: 6.2 mm
Height: 50.5 mm
Length: 64.5 mm
Unit Weight: 14.740 g
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 800 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 28 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 28 AWG to 10 AWG
Connection Method: Spring Cage
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
