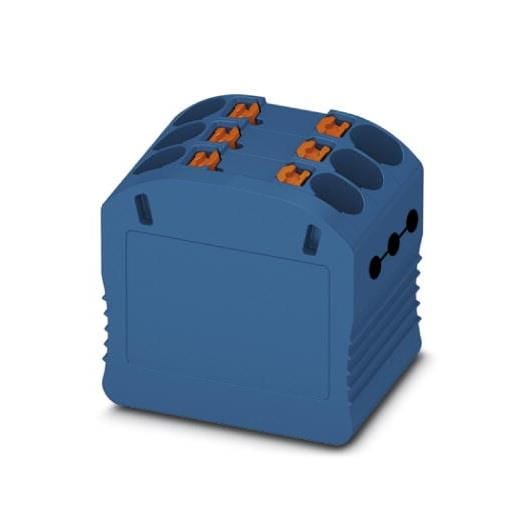

Color: Blue
Width: 12.5 mm
Height: 17.7 mm
Length: 21.6 mm
Unit Weight: 4.675 g
Current Rating: 17.5 A
Mounting Style: Direct Mounting with Flange
Voltage Rating: 450 V
Wire Gauge Max: 16 AWG
Wire Gauge Min: 26 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 26 AWG to 16 AWG
Connection Method: Push-In
Flammability Rating: UL 94 V-0
Number of Positions: 6 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
