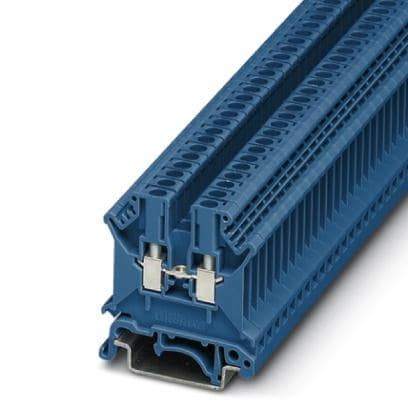

PHOENIX CONTACT 3001514 Feed Through Terminal Block UK3 N BU 5.2mm FEEDTHRU BLUE

Color: Blue

Width: 5.2 mm

Height: 47 mm

Length: 42.5 mm

Unit Weight: 7 g

REACH - SVHC: Details

Current Rating: 24 A

Mounting Style: DIN Rail (NS 32, NS 35/7.5, NS 35/15)

Voltage Rating: 800 V

Wire Gauge Max: 12 AWG

Wire Gauge Min: 24 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 24 AWG to 12 AWG

Connection Method: Screw

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
