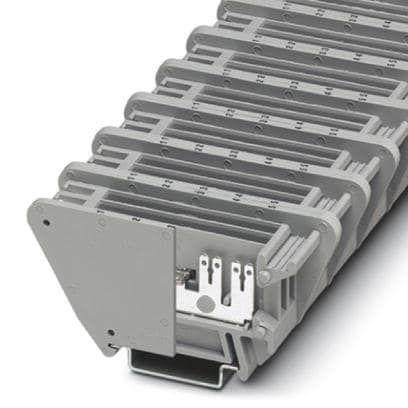

Color: Gray
Width: 23.2 mm
Height: 51 mm
Length: 80 mm
Unit Weight: 38.280 g
Current Rating: 30 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Number of Rows: 1 Row
Voltage Rating: 800 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 20 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 20 AWG to 10 AWG
Connection Method: Spade
Flammability Rating: UL 94 V-2
Number of Positions: 1 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
