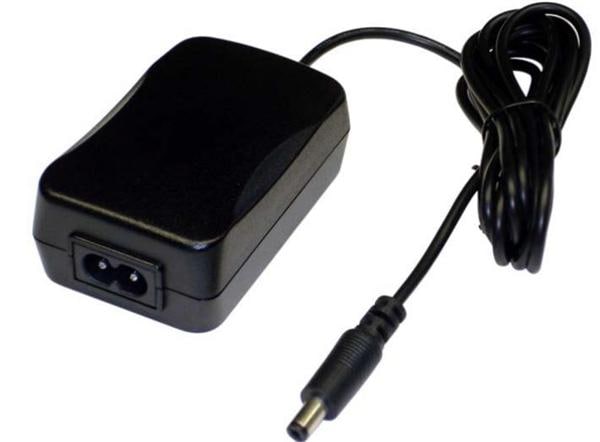

Phihong PSAA15W-480L6 Desktop AC Adapters 15W 48V 0.31A C8 Level VI 2.1x5.5

Width: 50 mm

Height: 29.8 mm

Length: 81.2 mm

Region: Universal

Industry: Industrial

Approvals: CB, CE, cUL/UL

Compliance: cUL/UL

Efficiency: Level VI

Unit Weight: 140 g

Output Power: 15 W

AC Inlet Type: IEC60320 C8

Input Voltage: 90 VAC to 264 VAC

Connector Type: Barrel Connector

Mounting Style: Desktop

Load Regulation: Regulated

Mechanical Style: External

Isolation Voltage: 500 VDC

Number of Outputs: 1 Output

DC Output Connector: 2.1 mm Barrel Plug (2.1x5.5)

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Connector A Polarity: Center Positive

DC Output Cord Length: 1.5 m

Output Current-Channel 1: 310 mA

Output Voltage-Channel 1: 48 VDC

AC Plug included/required: Included

Operating Temperature Range: 0 C to + 40 C

Maximum Operating Temperature: + 40 C

Minimum Operating Temperature: 0 C
