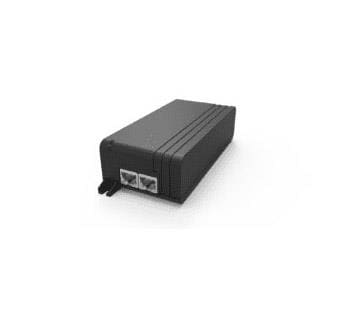

Phihong POE60U-BTB5660-R PoE Injectors 60W 56V 10mA 5G 6kV Output Surge IEEE802.3bt PoE Injector

Width: 67 mm

Height: 38 mm

Length: 140 mm

Approvals: EN 55035, IEC 61000

Efficiency: Level VI

Unit Weight: 270 g

Output Power: 60 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Load Regulation: Regulated

Number of Ports: 2 Port

Number of Outputs: 1 Output

DC Output Connector: RJ45 Connector

Output Current-Channel 1: 10 mA

Output Voltage-Channel 1: 56 V

AC Plug included/required: Included

Maximum Operating Temperature: + 40 C

Minimum Operating Temperature: - 20 C
