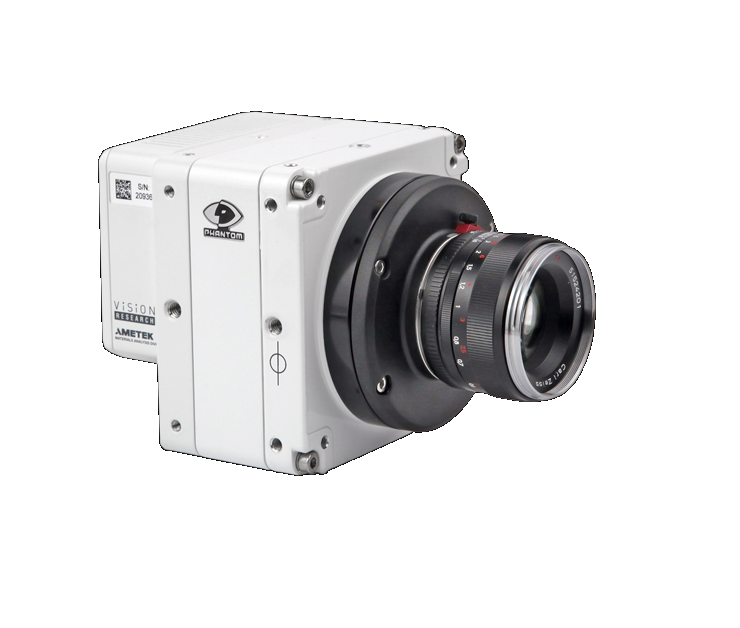

PHANTOM VEO4K 590 High-Speed Camera (4096 x 2304 pixel; 72Gb Mono, F-Mount, 12-Bit, 5Us, WHT)

Throughput/Speed

- 5 Gpx/second

- Max speed at full resolution of 4096 x 2304 is 530 fps

- At 4096 x 2160 max speed is 570 fps

- At 2048 x 1080 max speed is 1130 fps

- Minimum frame rate of 24 fps

Sensor Specifications

- CMOS sensor (color only)

- 12-bit pixel depth

- 4096 x 2304 pixels

- 6.75 µm pixel size

- 27.6 mm x 15.5 mm

- Super-35mm; 31.7mm diagonal

- Super-16mm format at 1920 x 1080

- Recommended Exposure Index Range 1000-1600

Exposure

- 5 μs minimum exposure.

- Global shutter (default).

- Exposure Index (E.I.) for controlling apparent ISO

- VEO4K also supports rolling shutter mode for increased dynamic range and limited need for black reference. In rolling shutter mode the scan time is 1-millisecond.

Memory

- 36 GB, 72 GB high-speed internal RAM

- On-board removable CFast 2.0 cards (S-models) up to 256GB

Power

- 100 - 240 VAC, 16-32 VDC via primary power input.

- 80 Watt 24V power supply included

- Secondary power input, down to 12V via capture port on S-model cameras

For more details, please see Datasheet
